WLB100-138-25BO - Datasheet
MBA
Category Information

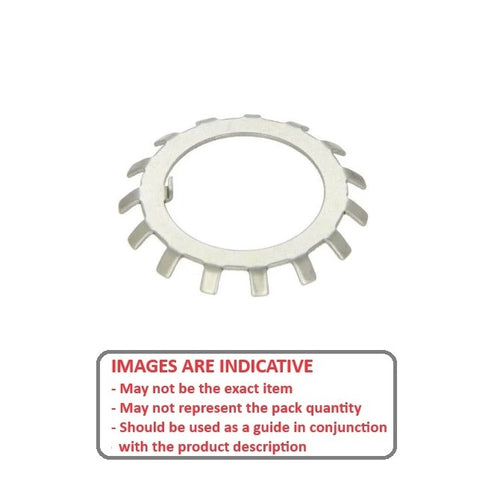

Washers - Lock - Tabbed - for Bearing Locknutsfor Bearing Locknuts Tabbed Lock Washers. This category includes equivalents to AW, W, TW, MB, WH and WT types.
- Lock washers are available in many different materials and types, including tabbed, split and toothed. An expanded range may be available on special order. Please enquire.
 - Designed to prevent nuts and bolts from loosening due to vibration or torque by creating tension and friction within the bolted joint, effectively securing the connection and preventing unwanted rotations.
 - Dimensions are nominal and may vary between batches.
 - For use with bearing lock nuts

Product Data
- Approximate ID (D1)
:
100.00
mm
(Equiv. 3.937 in.) - Approx OD (D5)
138.1
mm
(Equiv. 5.437 in.) - Tabs 19 Nr.
 - thickness (t) 2.5 mm
 - Matching Locknut N-20
 - Inner Tab Type Bent Outwards
 - Series W / Standard Duty
 - Material Carbon Spring Steel

Product Compliance and Data
Additional Resources
Cross References
- W20
