MLM-191C-152-S4HY - Datasheet
MBA
Category Information

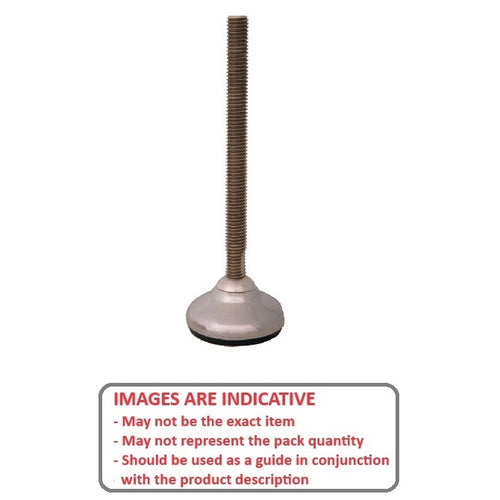

Mounts - Levelling Studded - Hygienic - 304 Stainless304 Stainless Hygienic Levelling Studded Mounts. Levelling adjusters. ANSI 304 stainless steel provides high corrosion resistance. Rounded polished base for fluid run-off during washdown applications.
- An expanded range may be available on special order. Please enquire.
- Rubber base is vulcanised to the housing and contains no voids for a completely hygienic seal.
- Full range of motion up to 10 degrees.
- Pivot provides secure footing and vibration control.
- Meets USDA requirements for food processing equipment.
Product Data

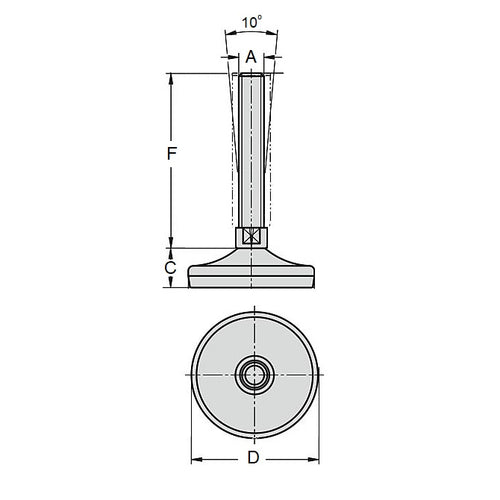

- Thread Size (A) : 3/4-10 UNC (19.05mm)
- Base Diameter (D)
80.0
mm
(Equiv. 3.15 in.) - Foot Height (C)
31.0
mm
(Equiv. 1.22 in.) - Thread Length (F) 152.4 mm
- Base Height (E) 31.0 mm
- Overall Height 183.4 mm
- Load Rating 1000 Kg
- 10
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- SX-47
- SX47
- MLM1000191C152S4
- MLM1000152191CS4
