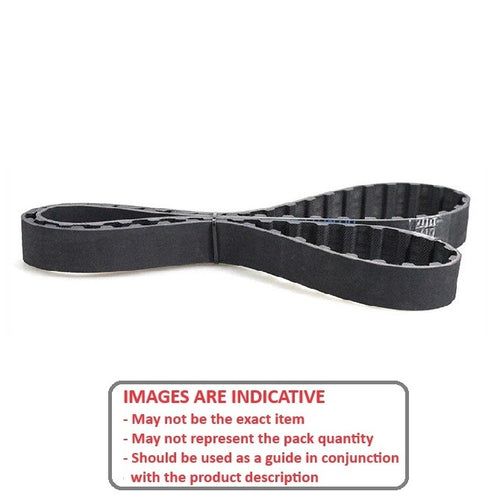

Single Sided 6.4mm Wide 2.032mm Pitch MXL Inch Timing Belts. Standard Series Timing Belts 2.032mm or 0.08 inch pitch. 6.35mm (1/4 inch) widths +/- 0.2mm

• Timing belts combined with timing pulleys, provide power transmission without slippage.
• Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
• Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
• Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
• Tooth Length (T) - 0.76mm
• Tooth Height (H) - 0.46mm
• Belt Height (W) - 1.14mm - Corner Radii ( r ) - 0.13mm
• Pitch (P) - 2.032mm (0.08 inch)
