CMF100-50-160M-R60 - Datasheet
MBA
Category Information

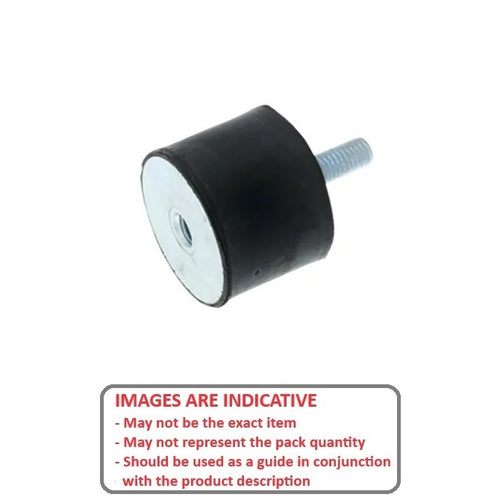

Mounts - Bobbin - Male to FemaleMale to Female Bobbin Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
Product Data

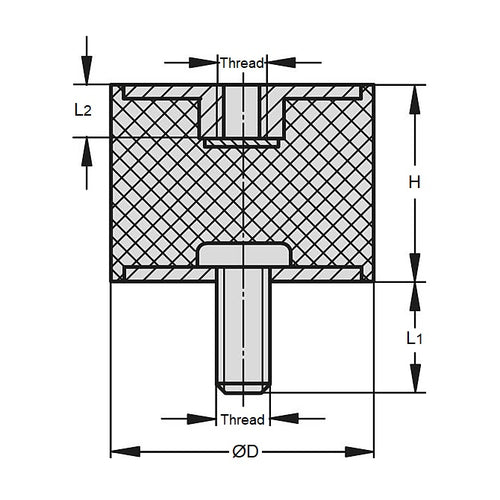

- Nom. Body Diameter (D)
:
100.0
mm
(Equiv. 3.937 in.) - Body Height (H)
50.0
mm
(Equiv. 1.969 in.) - Thread Size M16x2.00
- Shore Hardness 60
- Thread Length/Depth (L1/L2) 44.0 / 16.0 mm
- Compression Load 540 (1156) Kg (lbs)
- Deflection 4.7 mm
- Max Shear Load 99.9 (220.2) Kg (lbs)
- Configuration Male to Female
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- V12Z02MMFA05045
