CFB100-30-120M-R55 - Datasheet
MBA
Category Information

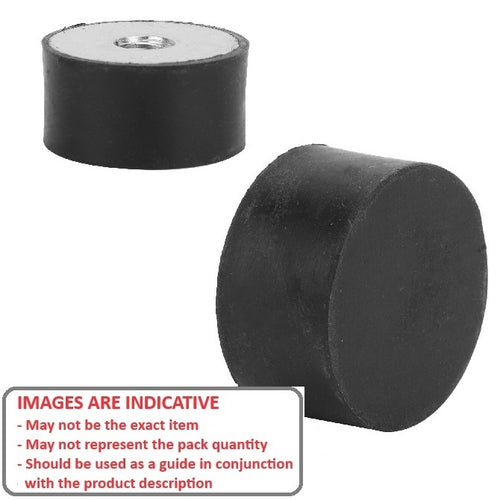

Mounts - Buffer - FemaleFemale Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
- Also see Bumpers
Product Data

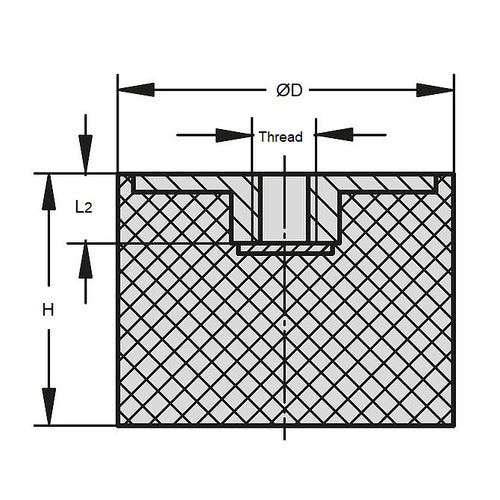

- Nom. Body Diameter (D)
:
100.0
mm
(Equiv. 3.937 in.) - Body Height (H)
30.0
mm
(Equiv. 1.181 in.) - Thread Size M12x1.75
- Shore Hardness 55
- Compression Load 4012 Kg (lbs)
- Deflection 7.5 mm
- Configuration Female to Blank
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- AVI 10030FFB12-55-M12
- 10030FFB1255M12
