REM-100-L-CT - Datasheet
MBA
Category Information

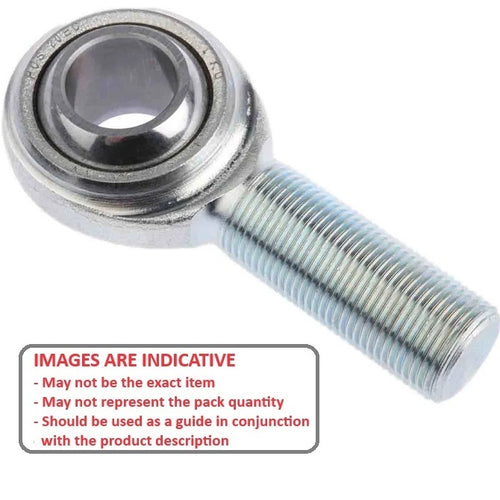

Rod Ends - Male - Steel - Tempered Steel PTFE LinedTempered Steel PTFE Lined Steel Male Rod Ends. Imperial and Metric. Forged tempered steel. Rolled thread. Surface galvanised. Also known as Heim Joints. Nylon - ptfe - glass compound race.
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data
- Eye Size (d1)
:
10
mm
(Equiv. 0.394 in.) - Overall Length (L)
62.500
mm
(Equiv. 2.461 in.) - Thread Size M10x1.5 Left
- Min. Thread Length (l2) 48.00 mm
- Head Width (W) 11.00 mm
- Eye Width (W1) 14.00 mm
- Head Diameter (D) 28.00 mm
- Centre Height (l1) 48.00 mm
- Grease Nipple No
- Material Tempered Steel with PTFE
Product Compliance and Data
Additional Resources
Cross References
- Misumi E-GZWL10
- EGZWL10
