REF-100-L-CT - Datasheet
MBA
Category Information

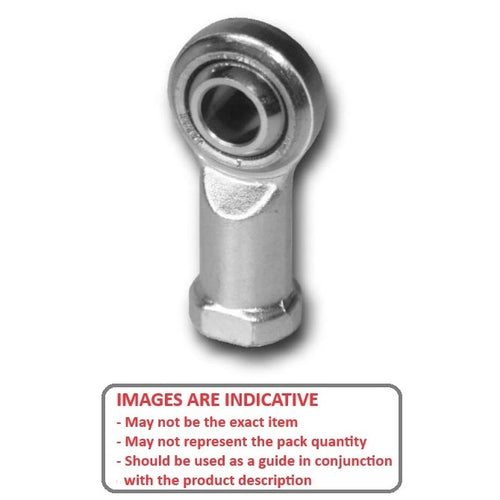

Rod Ends - Female - Steel - Plain - PTFE Lined - Tempered SteelTempered Steel PTFE Lined Plain Steel Female Rod Ends. Imperial and Metric. Forged tempered steel. Rolled thread. Surface galvanised. Also known as Heim Joints. Nylon - ptfe - glass compound race.
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data
- Eye Size (d1)
:
10
mm
(Equiv. 0.394 in.) - Overall Length (L)
57.500
mm
(Equiv. 2.264 in.) - Thread Size M10x1.5 Left
- Thread Length (l2) 20.00 mm
- Head Width (W) 10.50 mm
- Eye Width (W1) 14.00 mm
- Centre Height (l1) 43.00 mm
- Grease Nipple No
- Body Width/Flange Width(W2/D3) 17.00 / 19.00 mm
- Material Tempered Steel with PTFE
Product Compliance and Data
Additional Resources
Cross References
- Misumi E-GZNL10
- EGZNL10
