BL-01000-MAGN40 - Datasheet
MBA
Category Information

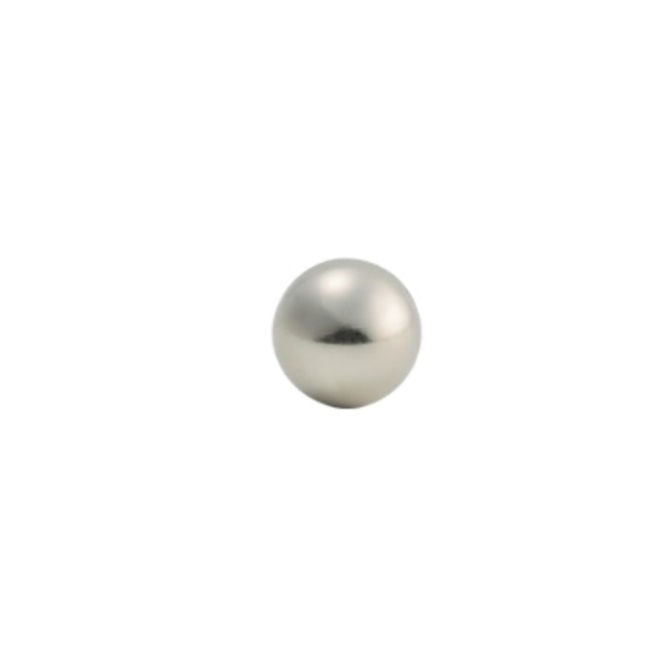

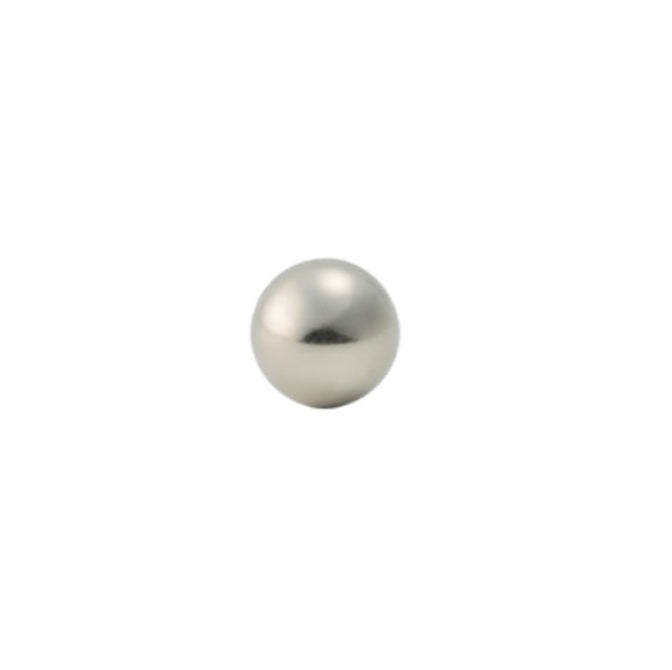

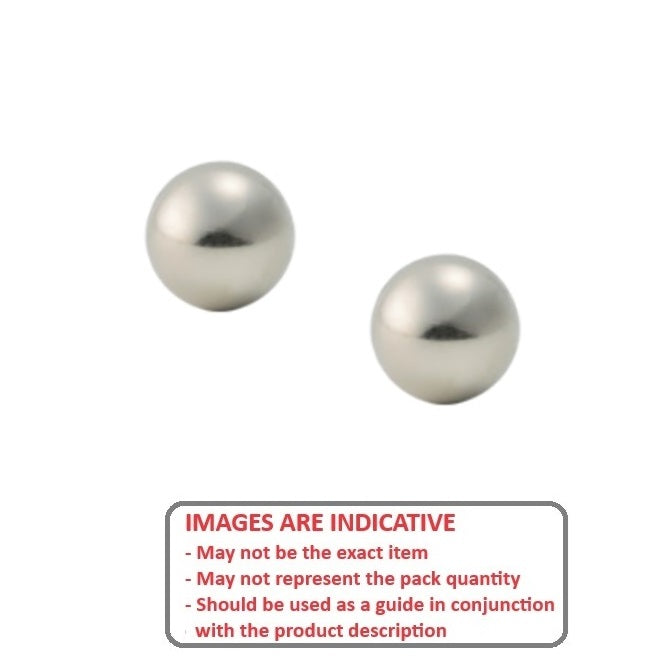

Balls - Metallic - MagneticMagnetic Metallic Balls. Please note that ball magnets are not to be used as toys. These are a strong magnet must be kept away from children as serious harm may result from ingestion.
- Grades shown are AFBMA and ISO3290-1 which relates primarily to the ovality of the ball rather than the diametrical tolerance
- General balls offered for sale may be from different ball lots, so the diametrical tolerance shown, indicates a variance that might be encountered if balls of different gauges are mixed, unless a ball gauge is specified for the part.
- For diametrically critical applications, a special quote can be obtained for balls of a specified ball gauge.
Product Data

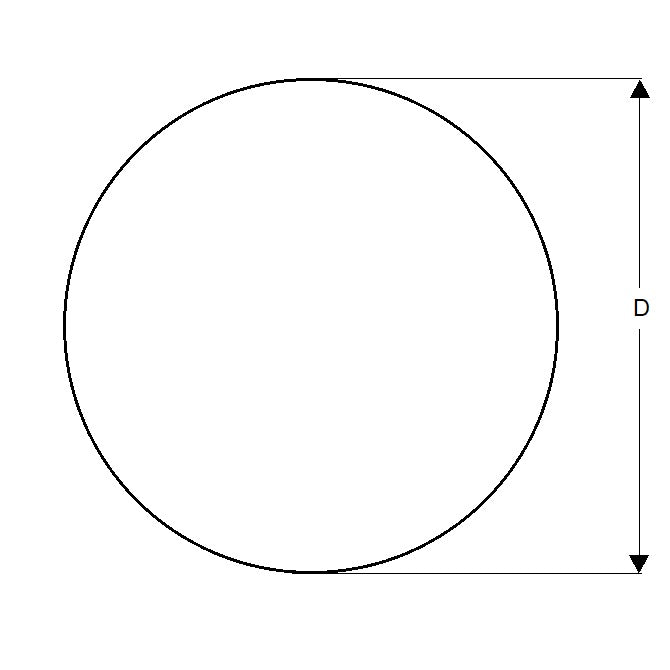

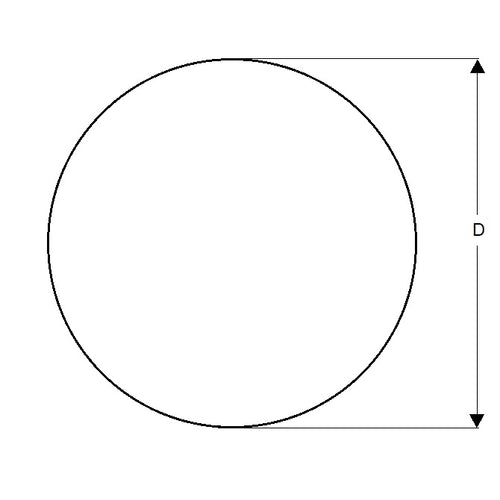

- Diameter (D)
:
10.000
mm
+ 0.10 / - 0.00
(Equiv. 0.394 in.) - Material Neodymium N-40 + 0.00 / - 0.10
- Colour Ni plating
- Notes Absorption Power 15.68 N
- Material Neodymium N-40
Product Compliance and Data
Additional Resources
Cross References
- Misumi NB002
- Misumi NOB17
