Miniature Bearings Australia
RPO-110-112-CZ - Datasheet
MBA
Category Information

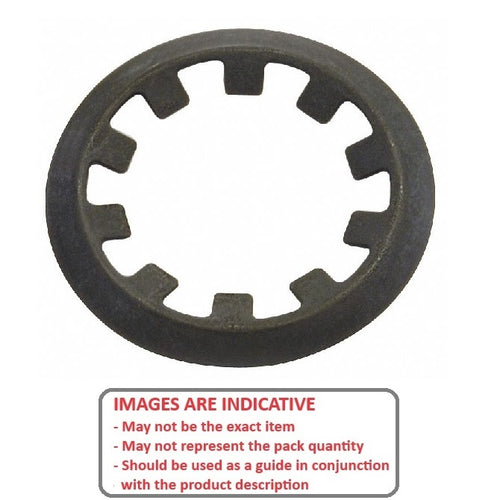

Retaining Rings - Push On - Carbon SteelCarbon Steel Push On Retaining Rings. M1465 / DTX / Seeger ZA and KS.
- An expanded range may be available on special order. Please enquire.
- Thrust load shown is calculated for ideal conditions with mild steel shaft.
- If no thrust load is shown, testing is suggested.
Product Data
- Min shaft size (s1) : 10.97 mm
- Max Shaft Size (s2) 11.23 mm
- Outside diameter (D1) 19.00 mm
- Min shaft extension (n1) 1.88 mm
- Finish Zinc Plated
- Material Thickness (t) 0.38 mm
- Material Carbon Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- Waldes® 5115-043-ZD
- Huyett® TX-043-ZD
- NoCor® TX-043-ZD
- Rotor Clip® TX-043-ZD
- TX043ZD
- N1465-043-ZD
- N1465043ZD
- 5115043ZD
