CMF010-08-040M-R60 - Datasheet

MBA

Product Data

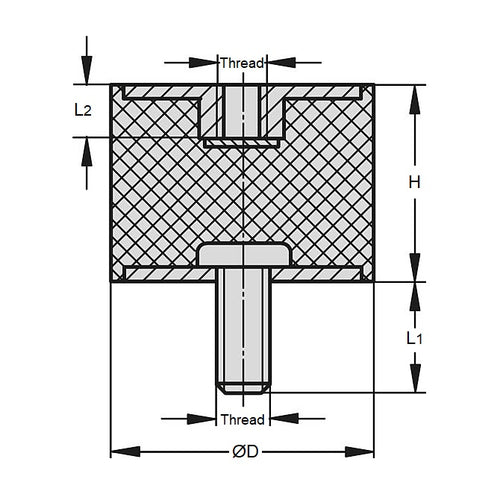

• Nom. Body Diameter (D) : 10.00 mm _{+ 0.10 / - 0.00}
  (Equiv. 0.394 in.)
• Body Height (H) 8.00 mm _{+ 0.00 / - 0.10}
  (Equiv. 0.315 in.)
• Thread Size M4x0.7 _{+ 0.00 / - 0.12}
• Shore Hardness 60
• Thread Length/Depth (L1/L2) 10.0 / 4.0 mm
• Max Shear Load 123 Kg (lbs)

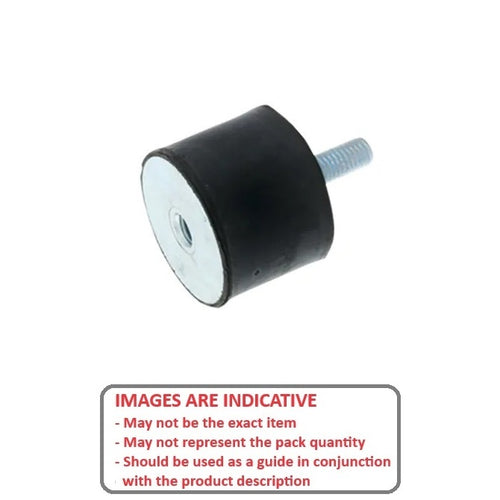

• Configuration Male to Female
• Other Info 73.00
• Material Natural Rubber

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Cylindrical Bobbin Mounts PDF Quick Guide


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• Misumi C-VD1008-10
• CVD100810
