CFB010-08-040M-R60 - Datasheet

MBA

Category Information

Mounts - Buffer - Female

Female Buffer Mounts. Vibration dampening

  • An expanded range may be available on special order. Please enquire.
  • Also see Bumpers

Product Data

  • Nom. Body Diameter (D) : 10.00 mm
  • Body Height (H) 8.00 mm
  • Thread Size M4x0.7
  • Shore Hardness 60
  • Thread Depth (L2) 4.0 mm
  • Max Shear Load 123 Kg (lbs)
  • Configuration Female to Blank
  • Other Info 73.00
  • Material Natural Rubber
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi® C-DE1008-4
  • CDE10084
View full details

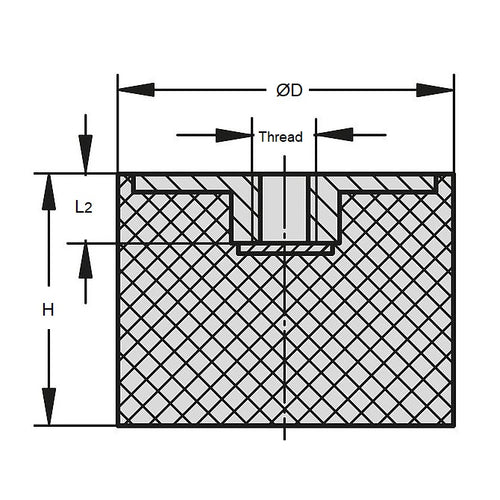

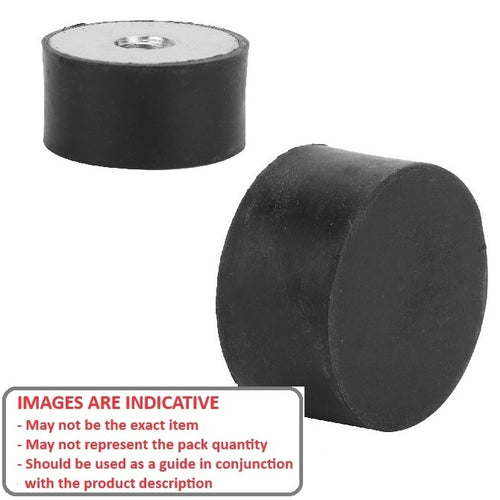

CFB010-08-040M-R60DiagramCFB010-08-040M-R60Image
