K-1000-0800-4000A-C - Datasheet
ExaktKey
Category Information

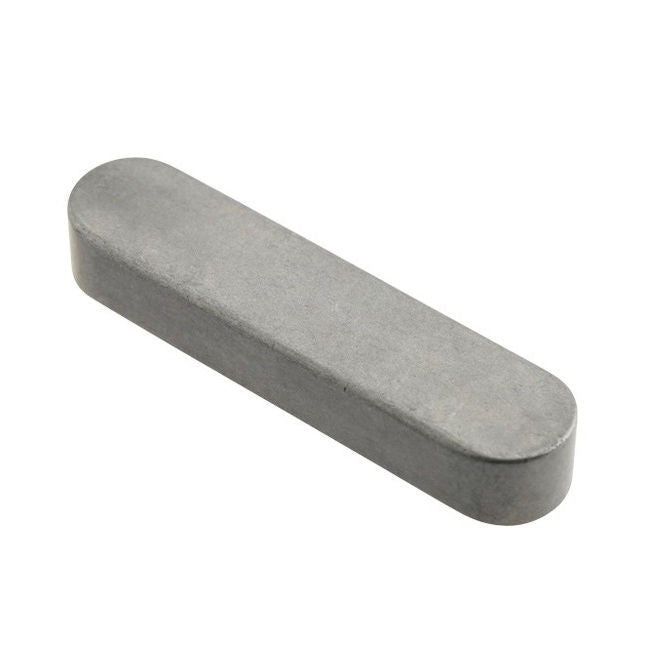

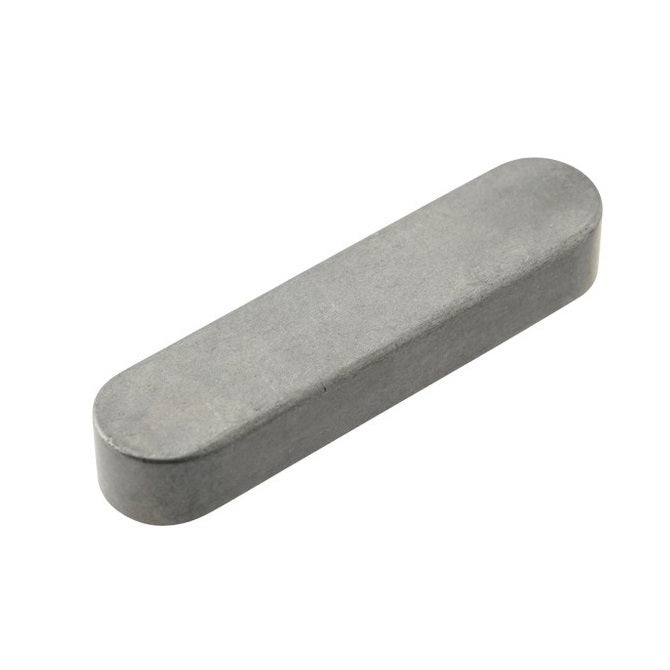

Keys - Machine - Carbon SteelCarbon Steel Machine Keys. Form A has rounded ends. Form B has square ends. Form AB has one end rounded and one end square. DIN6885
- An expanded range may be available on special order. Please enquire.
Product Data
- Width (W)
:
10.00
mm
+ 0 / - 0.036
(Equiv. 0.394 in.) - Height (h)
8.00
mm
+ 0 / - 0.036
(Equiv. 0.315 in.) - Length (L)
40.00
mm
+ / - 0.25
(Equiv. 1.575 in.) - Finish Plain
- Tolerance Type Standard Undersized
- End Type A (Rounded Ends)
- Material Carbon Steel C45
Product Compliance and Data
Additional Resources
Cross References
- NoCor 321008-040
- AUSKEY kmr1008-040a
- 321008040
- kmr1008040a
- KK10840
- KK10-8-40
