UFL000N - Datasheet

MBA

Category Information

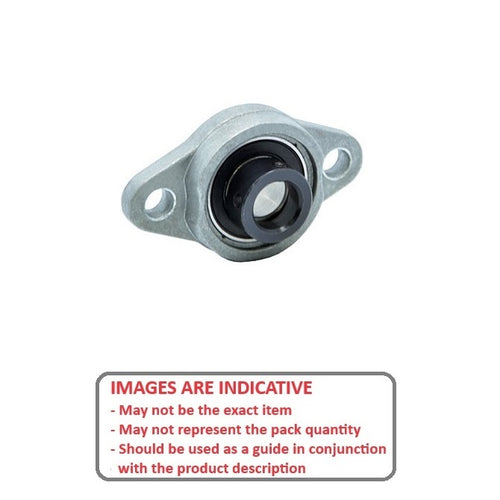

Housing and Bearing Assembly - Flanged 2 Bolt - Rigid - Aluminium

Aluminium Rigid Flanged 2 Bolt Housing and Bearing Assembly. Starting at 8mm bore size, aluminium silver series housings with removable chrome steel bearing

  • Bearing housing assemblies combine matching parts already assembled. Bearings in this range refer to either ball bearings or plain bearings. Refer to the listings for each type.
  • Flanged mounting allows for a shaft to run through a bulkhead to which the housing is mounted, or to have a shaft mounted perpendicular to a metal frame.

Product Data

  • Nominal Shaft Size : 10.0 mm
    (Equiv. 0.394 in.)

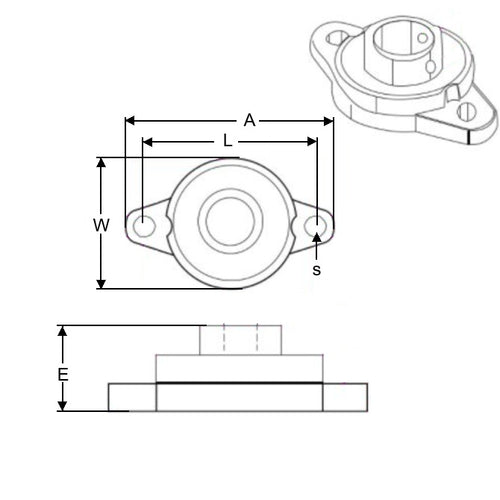

  • Width (W) 36.0 mm
    (Equiv. 1.417 in.)
  • Overall Length (A) 60.0 mm
    (Equiv. 2.362 in.)
  • Overall Height (E) 19.0 mm
  • Bolt Hole Size (s) 7.0 mm
  • Bolt Hole Centres (L) 45.0 mm
  • Material Aluminium
Country of Origin: TW
