KF048F-032-CB - Datasheet
MBA
Category Information

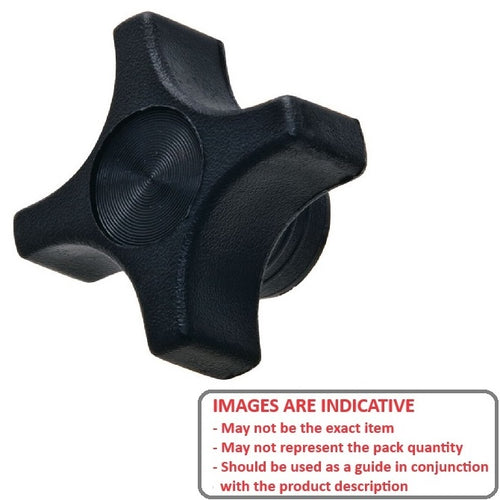

Knobs - Cross - Female - BlindBlind Female Cross Knobs. Black Plastic Knob with a Brass insert.
- 4 Prong cross knobs to go onto threads.
Product Data
- Thread Size : 10-32 UNF (4.76mm)

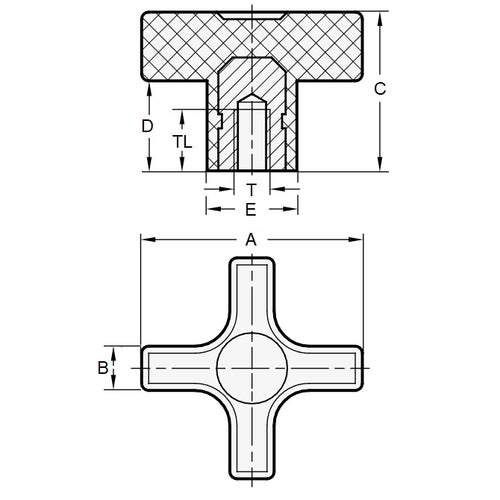

- Head Diameter (A)
31.75
mm
(Equiv. 1.25 in.) - Thread Length
7.9
mm
(Equiv. 0.311 in.) - Colour Black
- Hub Diameter (E) 15.88 mm
- Hub Length (D) 9.53 mm
- Knob Height (C) 22.23
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- DK650
- DK-650
