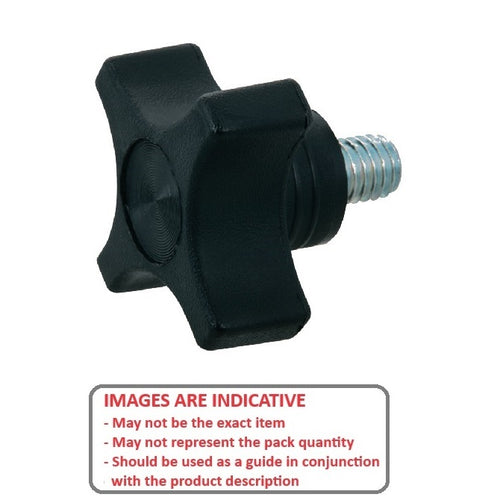

KM048F-032-CS19 - Datasheet

MBA

Product Data

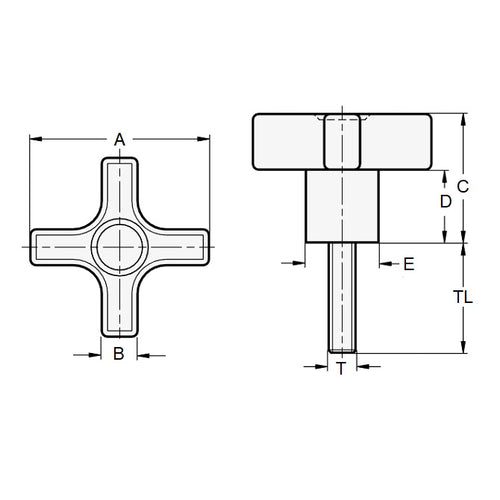

• Thread Size : 10-32 UNF (4.76mm)
• Head Diameter (A) 31.75 mm
  (Equiv. 1.25 in.)
• Thread Length 19.1 mm
  (Equiv. 0.752 in.)
• Knob Length (C) 22.23 mm
• Hub Diameter (E) 15.88 mm
• Hub Length (D) 9.53 mm
• Material Plated Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Knobs PDF Quick Guide by Thread Size


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• DK670
• DK-670
