KM048F-030-3LL-SFT - Datasheet

MBA

Category Information

Knobs - Lobe - Three Lobe - Male - Soft Touch

Soft Touch Male Three Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 10-32 UNF (4.76mm)

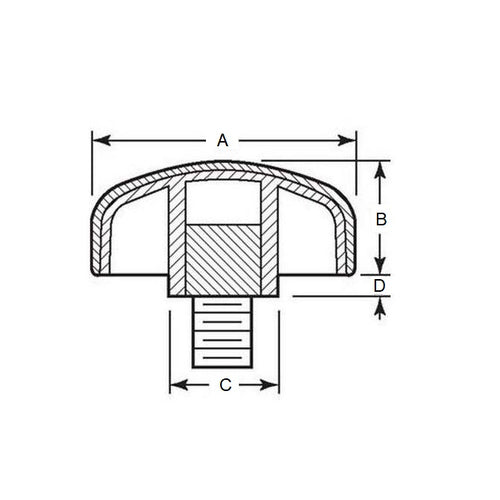

  • Head Diameter (A) 29.97 mm
    (Equiv. 1.18 in.)
  • Thread Length 25.4 mm
    (Equiv. 1 in.)
  • Colour Black
  • Hub Diameter (C) 12.70 mm
  • Hub Length (D) 3.81 mm
  • Knob Height (B) 17.02 mm
  • Material Zinc Plated Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • RK303
  • RK-303
View full details

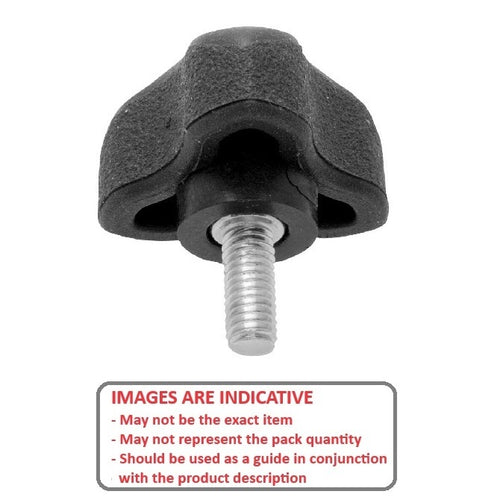

KM048F-030-3LL-SFTDiagramKM048F-030-3LL-SFTImage
