KF048F-030-3L-SFT - Datasheet

MBA

Category Information

Knobs - Lobe - Three Lobe - Female - Soft Touch

Soft Touch Female Three Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 10-32 UNF (4.76mm)

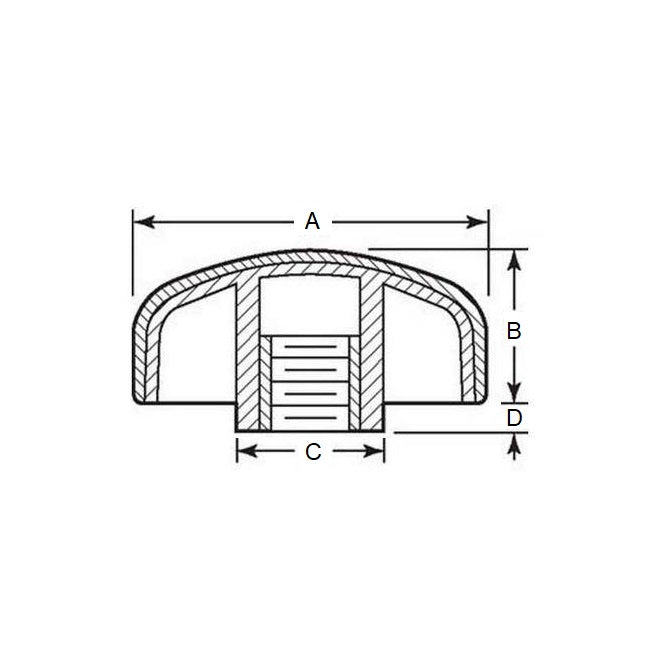

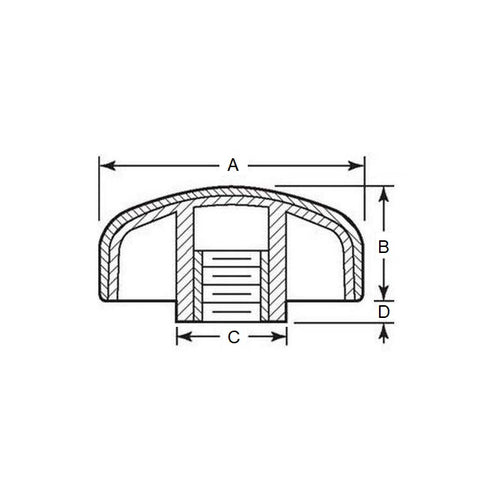

  • Head Diameter (A) 29.97 mm
  • Thread Length 14.0 mm
  • Colour Black
  • Hub Diameter (C) 12.70 mm
  • Hub Length (D) 3.81 mm
  • Knob Height (B) 17.02 mm
  • Material Zinc Plated Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 2776K2
  • Reid Tool® RK-300
  • RK300
View full details

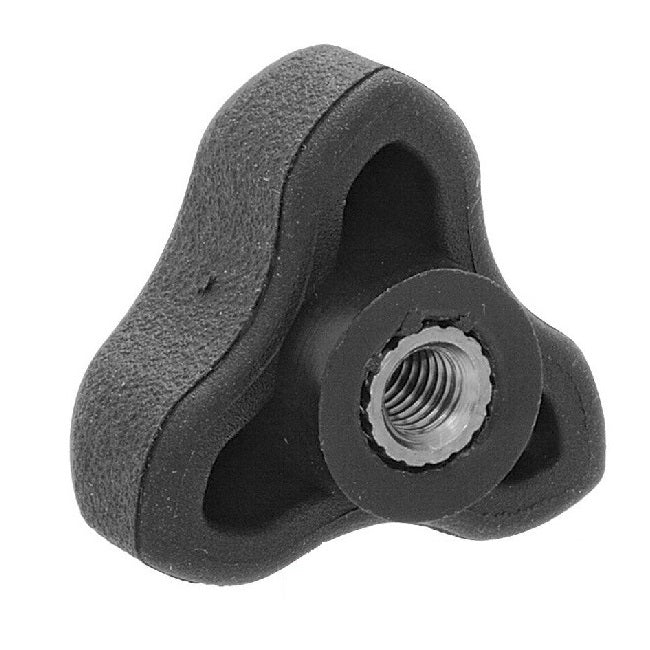

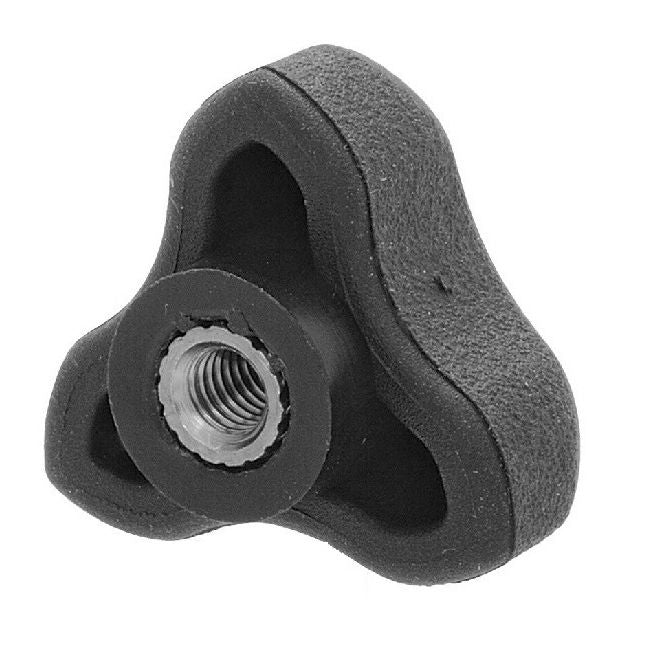

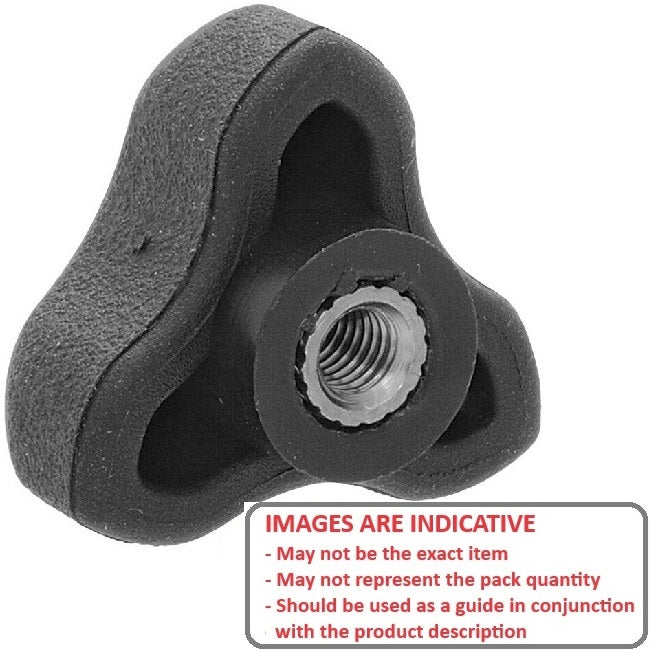

KF048F-030-3L-SFTDiagramKF048F-030-3L-SFTImage
