KF048F-025-CB - Datasheet

MBA

Category Information

Knobs - Cross - Female - Blind

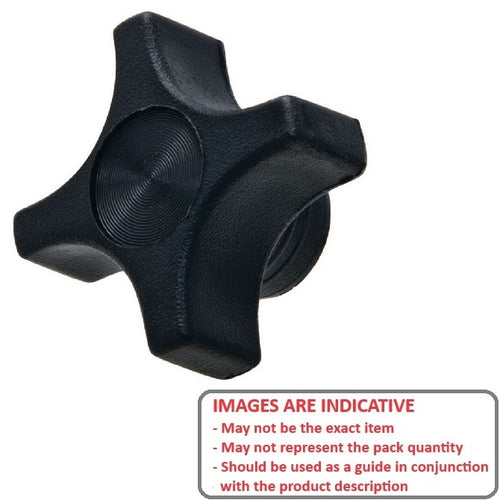

Blind Female Cross Knobs. Black Plastic Knob with a Brass insert.

  • 4 Prong cross knobs to go onto threads.

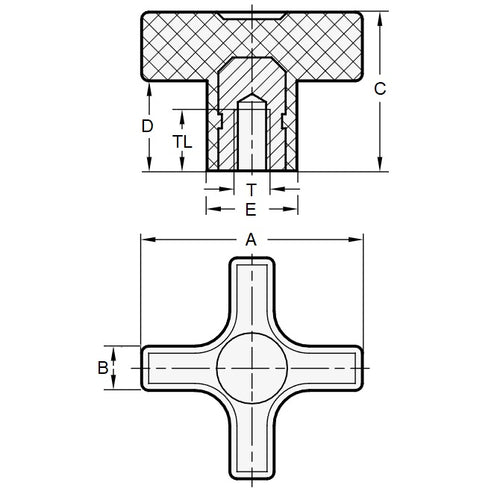

Product Data

  • Thread Size : 10-32 UNF (4.76mm)
  • Head Diameter (A) 25.40 mm
    (Equiv. 1 in.)
  • Thread Length 9.5 mm
    (Equiv. 0.374 in.)
  • Colour Black
  • Hub Diameter (E) 11.11 mm
  • Hub Length (D) 11.11 mm
  • Knob Height (C) 19.05
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 5993K15
  • DK143
  • DK-143
