KM048F025-7L20-ST - Datasheet

MBA

Category Information

Knobs - Lobe - Seven Lobe - Male - Standard

Standard Male Seven Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 10-32 UNF (4.76mm)
  • Head Diameter (A) 25.00 mm
    (Equiv. 0.984 in.)
  • Thread Length 20.0 mm
    (Equiv. 0.787 in.)
  • Colour Black
  • Hub Diameter (C) 11.94 mm
  • Hub Length (D) 7.87 mm
  • Knob Height (B) 16.00 mm
  • Material Plated Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • KaVo KBP-263
  • KBP263
View full details

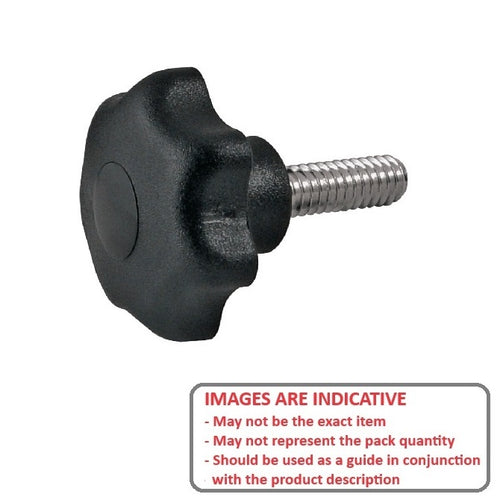

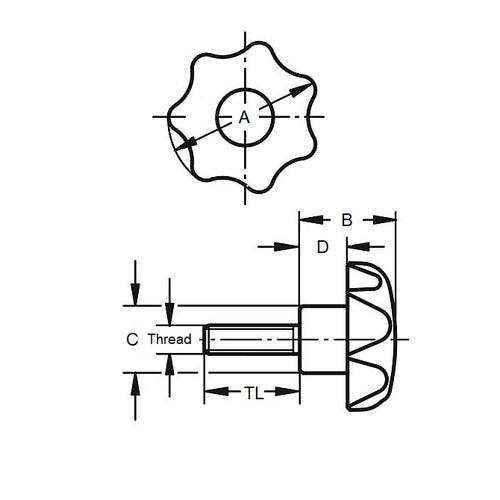

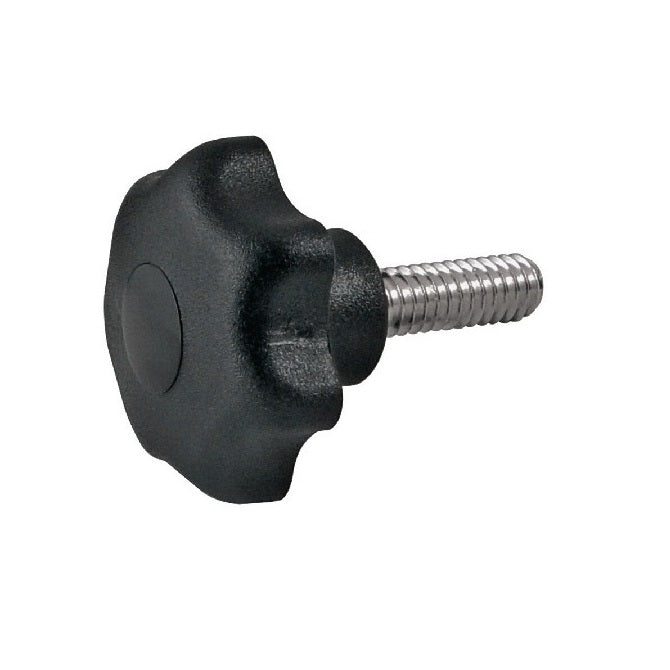

KM048F025-7L20-STDiagramKM048F025-7L20-STImage
