Miniature Bearings Australia
KM048F-025-5LSFT19-ST - Datasheet
MBA
Category Information

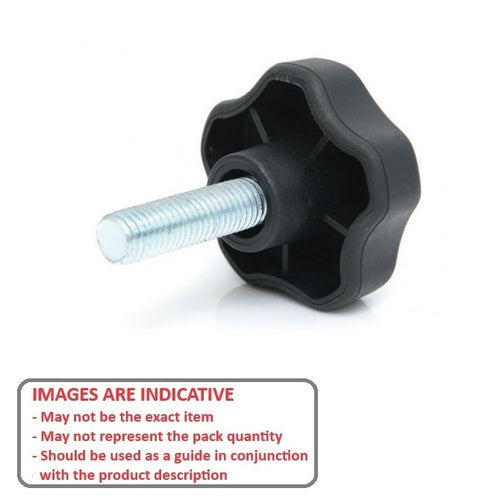

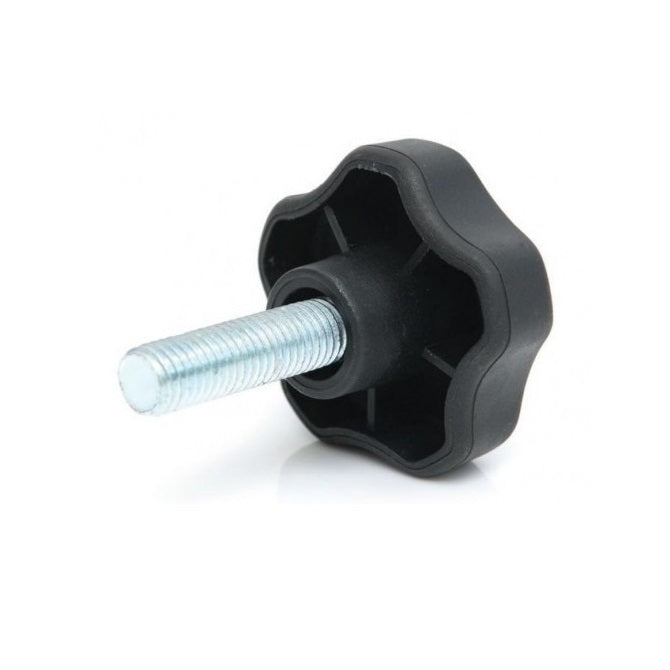

Knobs - Lobe - Five Lobe - Male - Soft TouchSoft Touch Male Five Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 10-32 UNF (4.76mm)
- Head Diameter (A)
25.00
mm
(Equiv. 0.984 in.) - Thread Length
19.1
mm
(Equiv. 0.752 in.) - Colour Black
- Hub Diameter (C) 12.95 mm
- Knob Height (B) 19.05 mm
- Material Plated Steel and Plastic
Product Compliance and Data
Additional Resources
Cross References
- KHY-205
- KHY205
