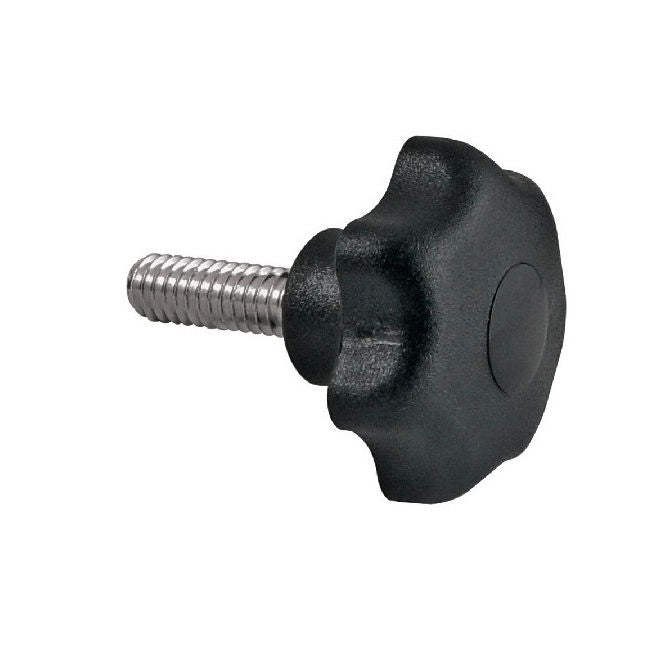

KM048F025-7L10-S4 - Datasheet

MBA

Category Information

Knobs - Lobe - Seven Lobe - Male - Standard

Standard Male Seven Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 10-32 UNF (4.76mm)
  • Head Diameter (A) 25.00 mm
    (Equiv. 0.984 in.)
  • Thread Length 10.0 mm
    (Equiv. 0.394 in.)
  • Colour Black
  • Hub Diameter (C) 11.94 mm
  • Hub Length (D) 7.87 mm
  • Knob Height (B) 16.00 mm
  • Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • KaVo KBP-287
  • KBP287
View full details
KM048F025-7L10-S4DiagramKM048F025-7L10-S4Image
