KF048F-025-5L-BR - Datasheet
MBA
Category Information

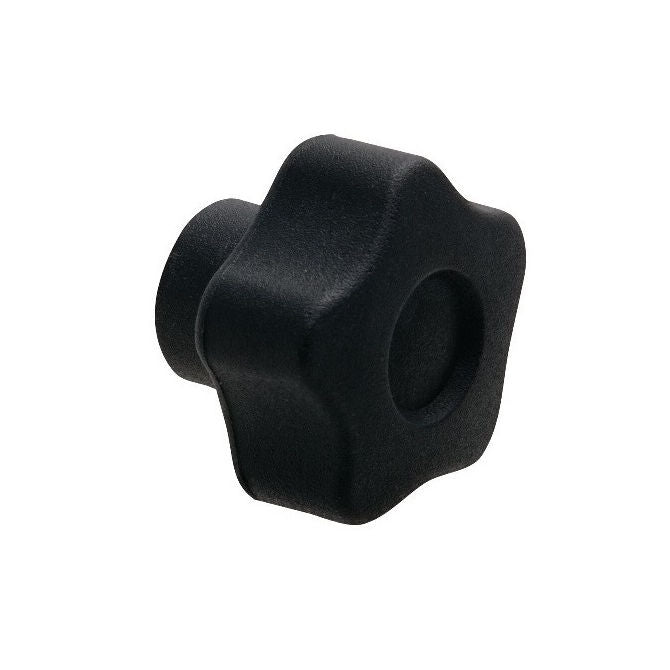

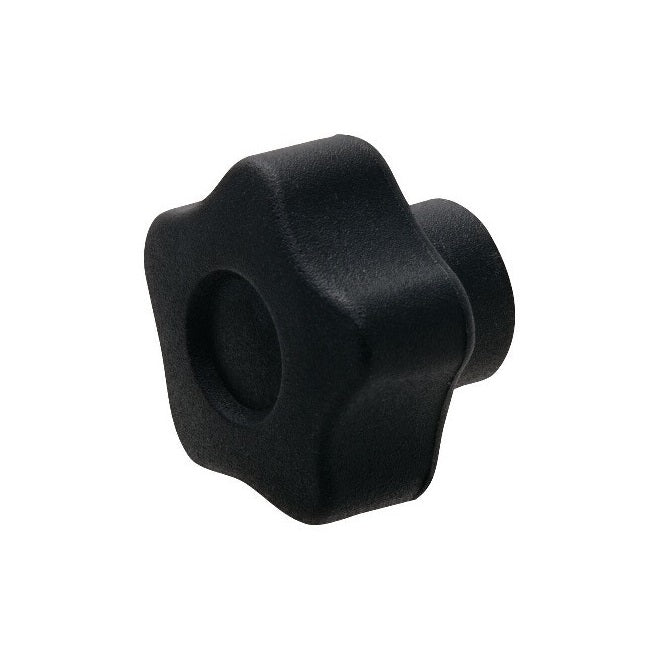

Knobs - Lobe - Five Lobe - Female - StandardStandard Female Five Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 10-32 UNF (4.76mm)
- Head Diameter (A) 24.89 mm
- Thread Length 9.9 mm
- Colour Black
- Hub Diameter (C) 12.95 mm
- Knob Height (B) 19.05 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® KHY-100
- KHY100
