KF048F-020-4L-P - Datasheet
MBA
Category Information

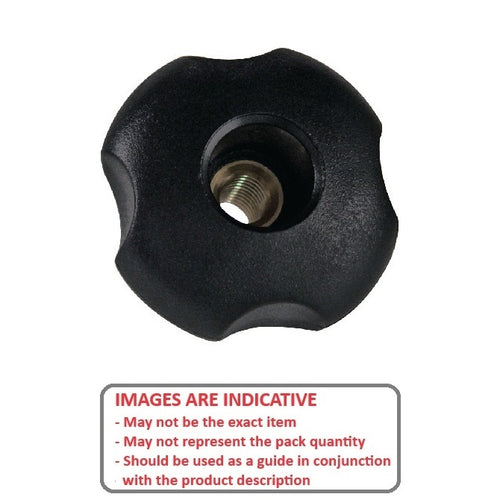

Knobs - Lobe - Four Lobe - Female - Through HoleThrough Hole Female Four Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 10-32 UNF (4.76mm)

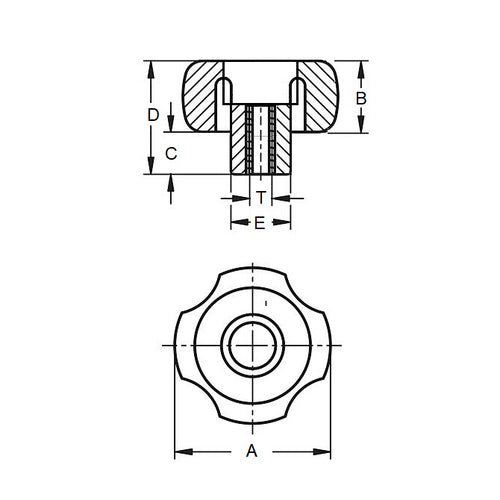

- Head Diameter (A)
20.07
mm
(Equiv. 0.79 in.) - Thread Length
7.1
mm
(Equiv. 0.28 in.) - Colour Black
- Hub Diameter (E) 10.92 mm
- Hub Length (C) 5.08 mm
- Knob Height (D) 12.95 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- JCL135
- JCL-135
