Miniature Bearings Australia
SCC048F-007-RP-C - Datasheet
MBA
Category Information

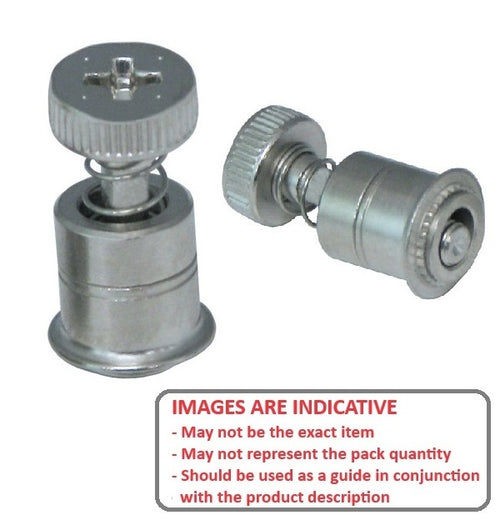

Screws - Captive - RetractableRetractable Captive Screws. Compliance with UL 1950 and EN 60950 codes for access areas. Ratchet mechanism allows screw to be tightened down by hand, but a tool is needed to loosen.Fully retractable captive to the panel and spring ejected.
- Press in style.
- Bright chromate zinc plated, case hardened steel with aluminium knob and stainless steel spring.
- Knobs available either slotted or no.2 phillips.
Product Data
- Thread : 10-32 UNF (4.76mm)
- Knob Style Phillips
- - Steel / Zinc Bright Chromate Finish
- Material Steel / Zinc Bright Chromate Finish
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- SC4716
- SC-4716
