SC048F-010-P-PH-CZ - Datasheet
MBA
Category Information

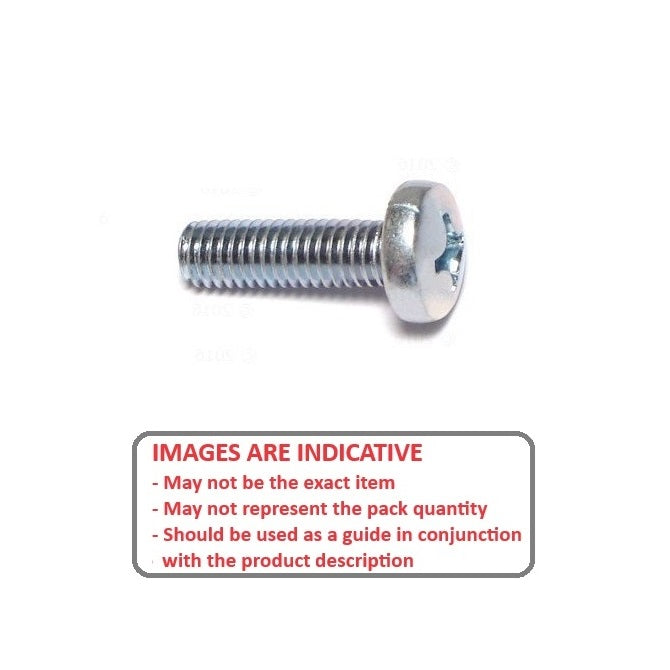

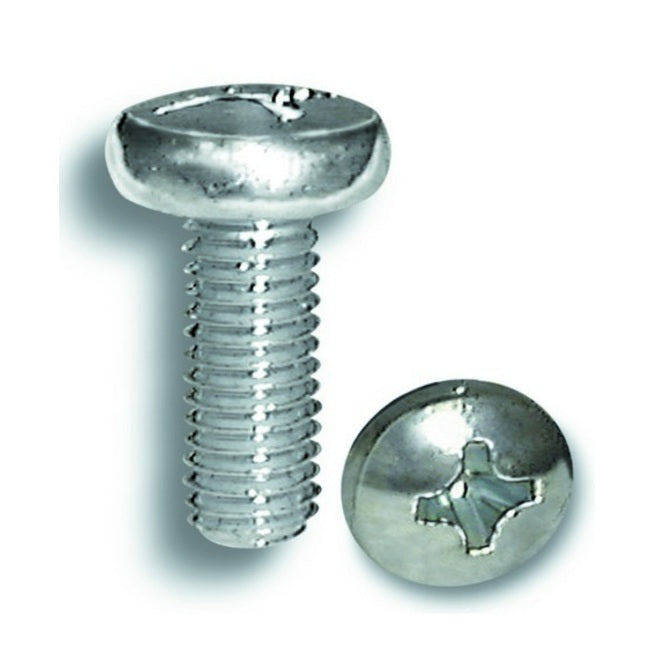

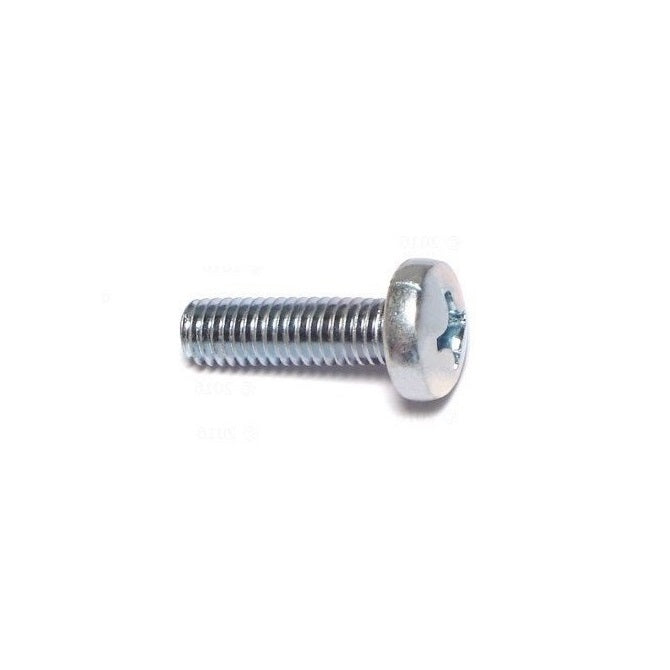

Screws - Pan Head - Phillips - SteelSteel Phillips Pan Head Screws. Metal Thread Screws UNC - UNF - METRIC
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

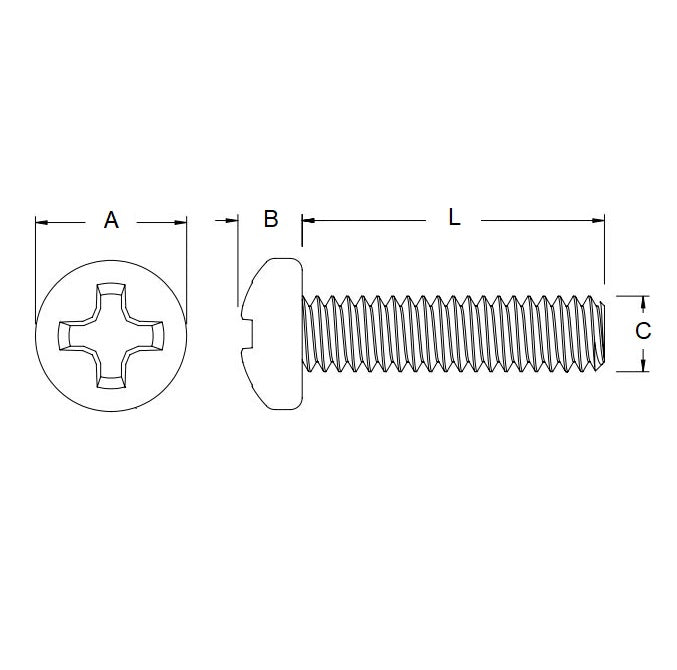

- Thread Size (C) : 10-32 UNF (4.76mm)
- Thread Length (L)
9.5
mm
(Equiv. 0.374 in.) - Material Zinc Plated Steel
- Max Head Diameter 9.5 mm
- Max Head Height 2.8 mm
- Pitch 0.794 mm
- Threads Per Inch 32 TPI
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 90272A827
- MicroFast MSPP1106
