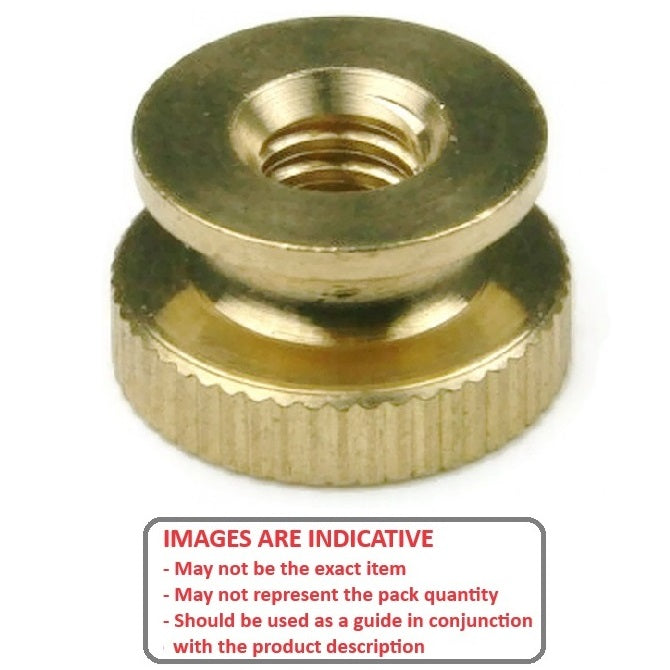

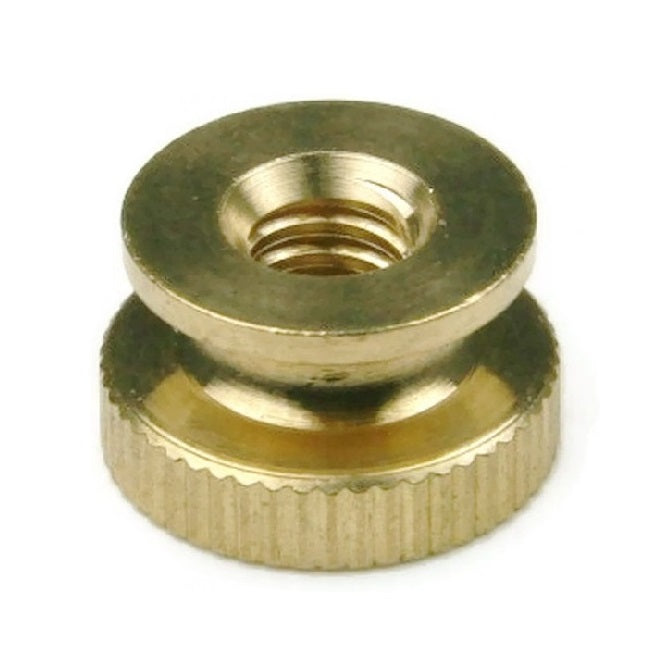

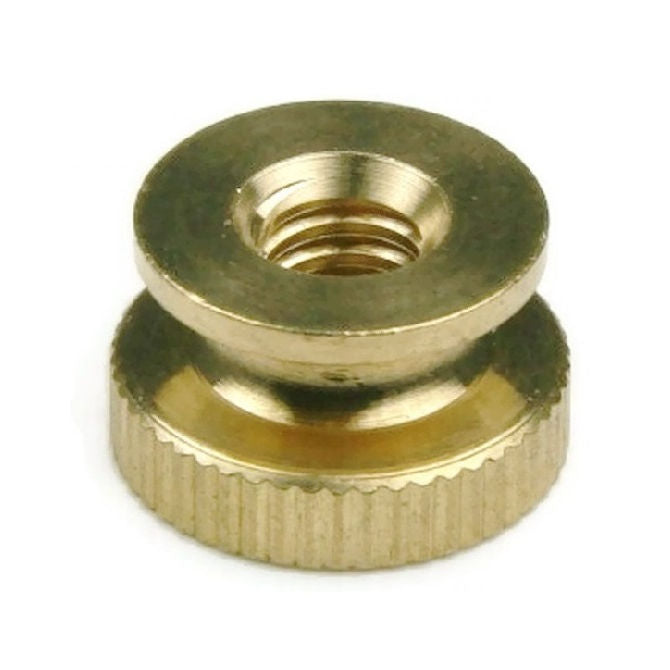

NT048F-THC-BR - Datasheet

MBA

Product Data

• Thread Size : 10-32 UNF (4.76mm)

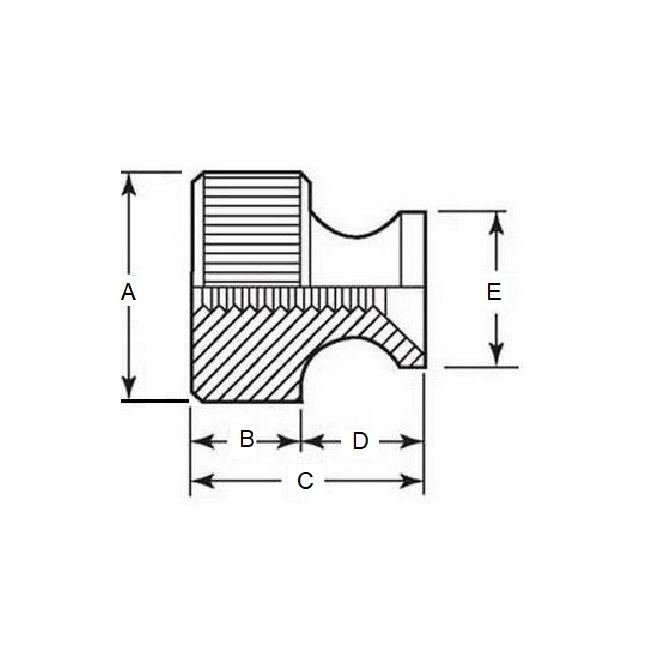

• Overall Length (C) 8.7 mm
• Head Width (B) 3.97 mm
• Head Diameter (A) 12.70 mm
• Collar Diameter (E) 10.32 mm
• Collar Height (D) 4.76 mm
• Material Brass

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Thumb Screws and Nuts PDF Quick Guide

• Pan Head Screws

• Screws


• Measuring Small Parts
• Metalworking Resource Guide

• Metric Wingnut Dimensions
• Screws & Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 92741A140
• Reid Tool® AJ-718
• AJ718
