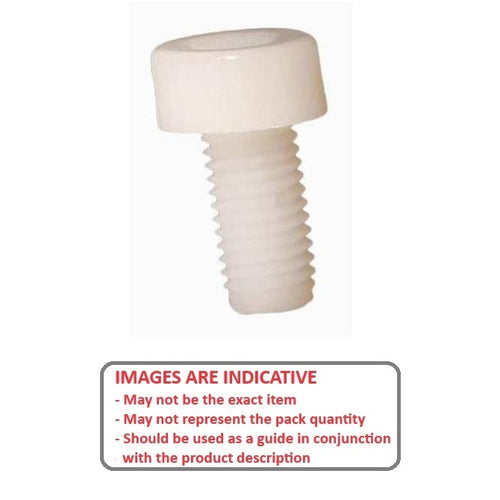

SC048F-006-C-SK-N - Datasheet

MBA

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

• Thread Size (C) : 10-32 UNF (4.76mm)
• Thread Length (L) 6.4 mm
  (Equiv. 0.252 in.)
• Material Nylon (Zytel 101)
• Head Length (B Max.) 4.8 mm
• Head Diameter (A Max.) 7.9 mm
• Drive Depth (E) 2.29 mm
• Shank Diameter (C) 4.67 - 4.83 mm
• Hex Key (D) 3.97 (5/32) mm
• Pitch 0.794 mm
• Threads Per Inch 32 TPI
• Min thread Length 6.4 mm
• Material Nylon (Polyamide 6/6)

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
