SC048F-006-LH-SK-C - Datasheet
Brighton Best
Category Information

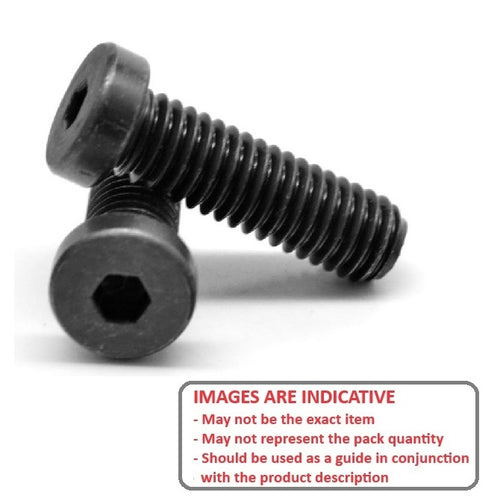

Screws - Low Head Socket - Carbon SteelCarbon Steel Low Head Socket Screws. UNC - UNF - METRIC - Alloy Steel.
- Note. Hex key size may. The size listed is the usual and minimum size.
Product Data
- Thread Size (C) : 10-32 UNF (4.76mm)
- Thread Length (L)
6.4
mm
(Equiv. 0.252 in.) - Material High Tensile Steel / Black Oxide
- Head Height 2.34 - 2.49 mm
- Head Diameter 7.70 - 7.93 mm
- Usual Hex Key (D) 2.38 (3/32) (May Vary) mm
- Pitch 0.794 mm
- Threads Per Inch 32 TPI
- Material High Tensile Steel Black Oxide
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 019017
- 92220A171
