SK048F-006-SL-S4 - Datasheet

MBA

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

• Thread Size (C) : 10-32 UNF (4.76mm)
• Overall Length (L) 6.4 mm
  (Equiv. 0.252 in.)
• Material 304 Stainless
• Max Head Diameter (A) 9.19 mm
• Max Head Height 2.95 mm

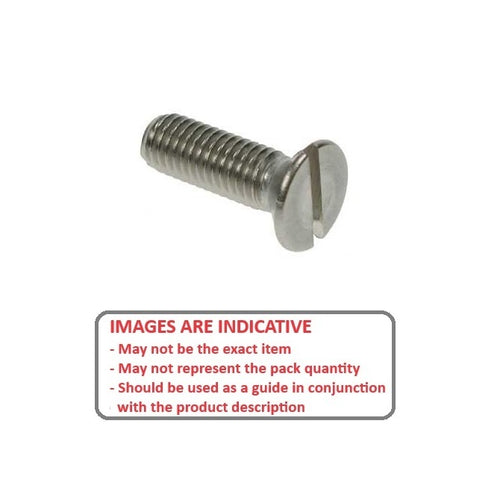

• Type Countersunk / Slotted
• Pitch 0.794 mm
• Threads Per Inch 32 TPI
• Material Stainless Steel 304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• PDF Screws Catalogue

• Washers

• Nuts


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 91781A825
• Small Parts MX-032-4F
• A9X16F103204
• A9X16-F103204
• MX0324F
• A 9X16-F103204
