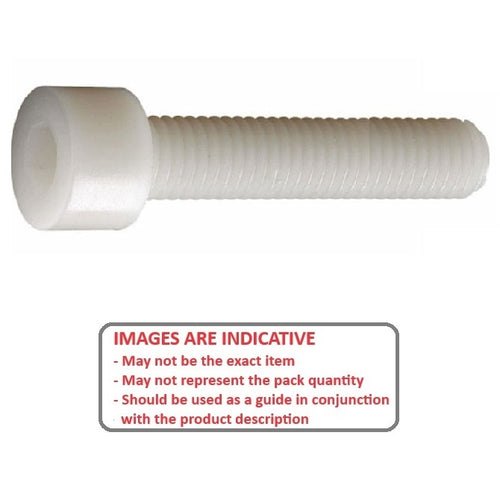

SC048F-051-C-SK-N - Datasheet

MBA

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

• Thread Size (C) : 10-32 UNF (4.76mm)
• Thread Length (L) 50.8 mm
  (Equiv. 2 in.)
• Material Nylon
• Head Length (B Max.) 4.8 mm
• Head Diameter (A Max.) 7.9 mm
• Drive Depth (E) 2.29 mm
• Shank Diameter (C) 4.67 - 4.83 mm
• Hex Key (D) 3.97 (5/32) mm
• Pitch 0.794 mm
• Threads Per Inch 32 TPI
• Min thread Length 22.3 mm
• Material Nylon (Polyamide 6/6)

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• PDF Screws Catalogue

• Washers

• Nuts


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 95686A098
• MicroFast NSC1132
