Miniature Bearings Australia
SS048F-0048-S3-BT - Datasheet
MBA
Category Information

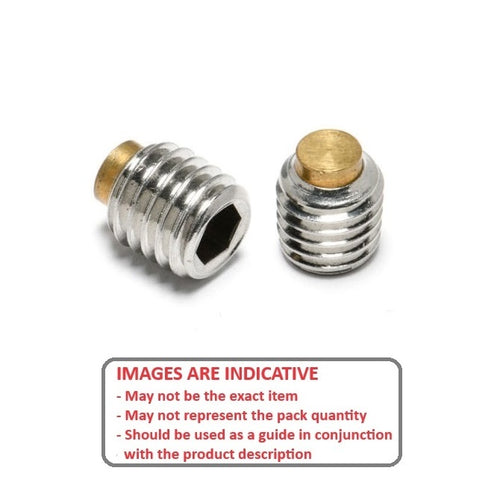

Socket Set Screws - Brass Tipped - Stainless SteelStainless Steel Brass Tipped Socket Set Screws. Brass tipped grub screws. Helps to prevent shaft damage on harder shafts.
Product Data
- Thread Size : 10-32 UNF (4.76mm)
- Thread Length (L)
4.8
mm
(Equiv. 0.189 in.) - Type Brass Tipped
- Overall Length (L + L1) 6.0 mm
- Tip Diameter (d) 2.4 mm
- Tip Length (L1) 1.2
- Pitch 0.794 mm
- Threads Per Inch 32 TPI
- Material Stainless Steel 18-8 (Similar to A2, 303, 304)
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 90669A337
- BTS695
- BTS-695
