SC048F-025-H-S4 - Datasheet
MBA
Category Information

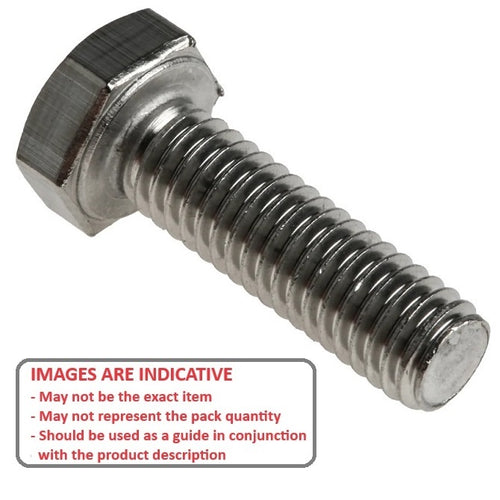

Screws - Hex Head - 304 Stainless - StandardStandard 304 Stainless Hex Head Screws. Metric - UNF - UNC
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : 10-32 UNF (4.76mm)
- Thread Length (L)
25.4
mm
(Equiv. 1 in.) - Material 304 Stainless
- Max Head A/F 7.93 mm
- Max Head Height 3.05 mm
- Type Hex Head
- Pitch 0.794 mm
- Threads Per Inch 32 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 92314A833
- MicroFast HBS1116
