THS048F-025-KL-3-N - Datasheet
MBA
Category Information

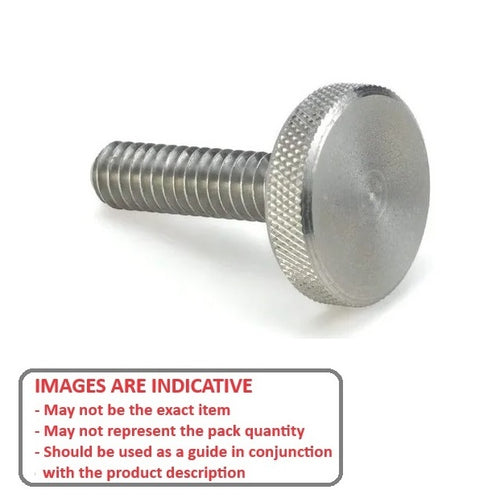

Screws - Thumb - Knurled - Stainless - Slim HeadSlim Head Stainless Knurled Thumb Screws. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
Product Data

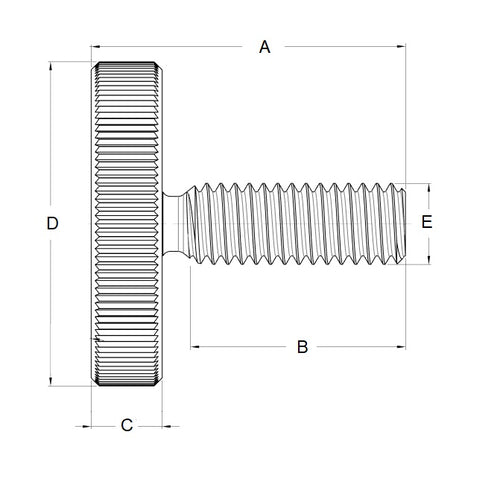

- Thread Size (E) : 10-32 UNF (4.76mm)
- Thread Length (B) 25.40 mm
- Overall Length (A) 36.51 mm
- Head Diameter (D) 19.05 mm
- Head Type Knurled
- Material Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Reid Tool® KTS-8287
- KTS8287
