SC048F-019-B-TX-S4 - Datasheet

MBA

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

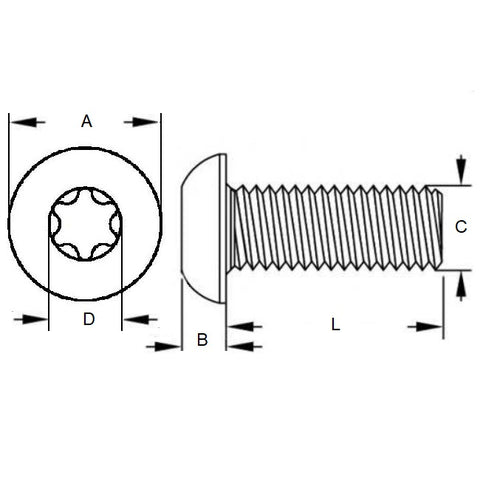

• Thread Size (C) : 10-32 UNF (4.76mm)
• Thread Length (L) 19.1 mm
  (Equiv. 0.752 in.)
• Material 304 Stainless
• Max Head Diameter 9.2 mm
• Max Head Height 2.6 mm

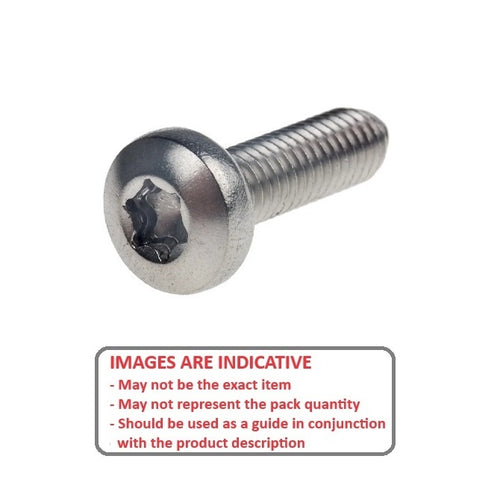

• Type Button Head / 6 Lobe (Torx® Style)
• Pitch 0.794 mm
• Threads Per Inch 32 TPI
• Material Stainless Steel 304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
