THS048F-013-K-BZ-WF - Datasheet
MBA
Category Information

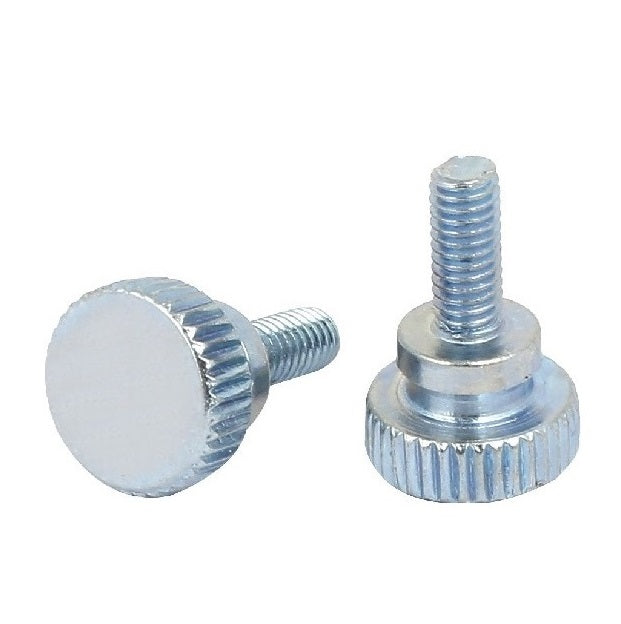

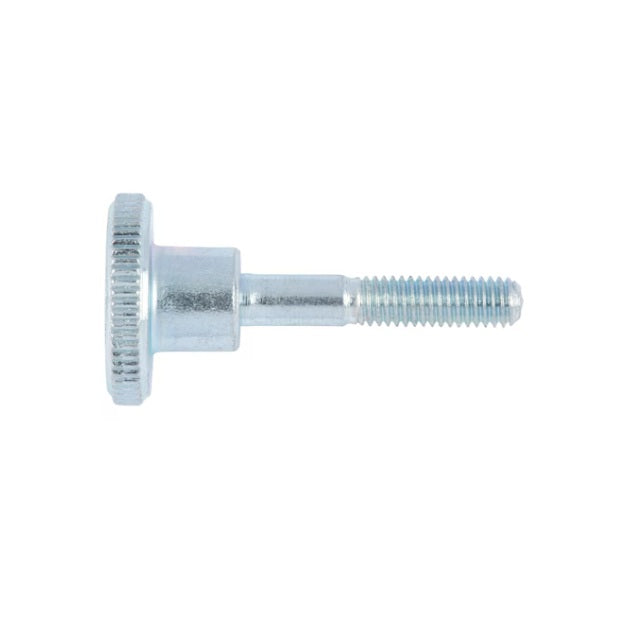

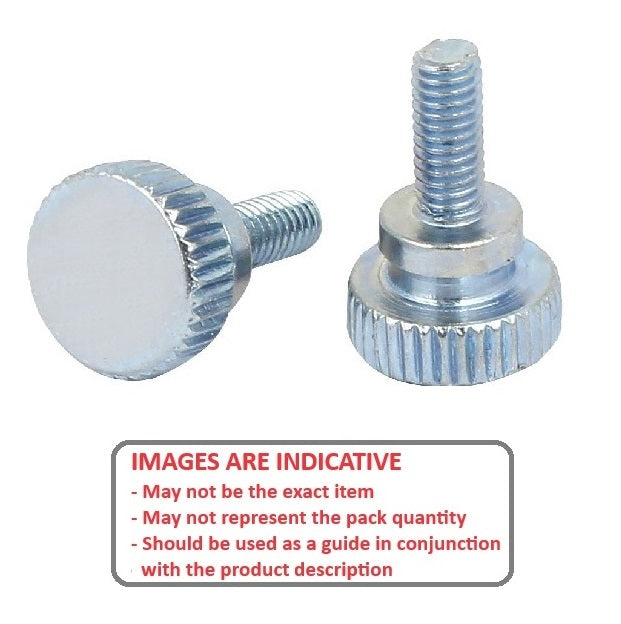

Screws - Thumb - Knurled - Washer Face - BrassBrass Washer Face Knurled Thumb Screws. Knurled head brass thumb screws with an integral washer
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 10-32 UNF (4.76mm)
- Thread Length (D) 12.70 mm
- Overall Length (C) 20.64 mm
- Head Diameter (A) 11.11 mm
- Head Height (B) 4.76 mm
- Finish Zinc, Clear Chrome Plated
- Washer Diameter (E) 9.53 mm
- Material Brass
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 92421A642
- Reid Tool® AJ-833
- AJ833
