NART10R - Datasheet
MBA
Category Information

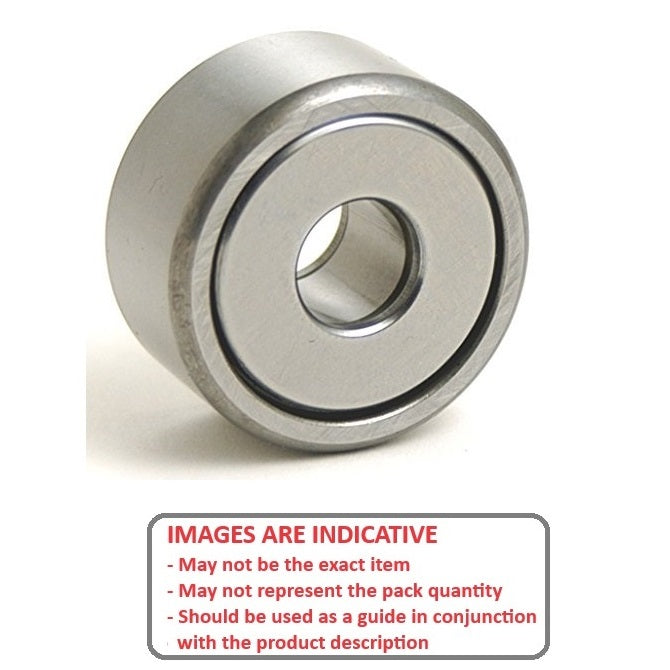

Rollers - Track - With Inner RaceWith Inner Race Track Rollers. This is the main category in this series
Product Data

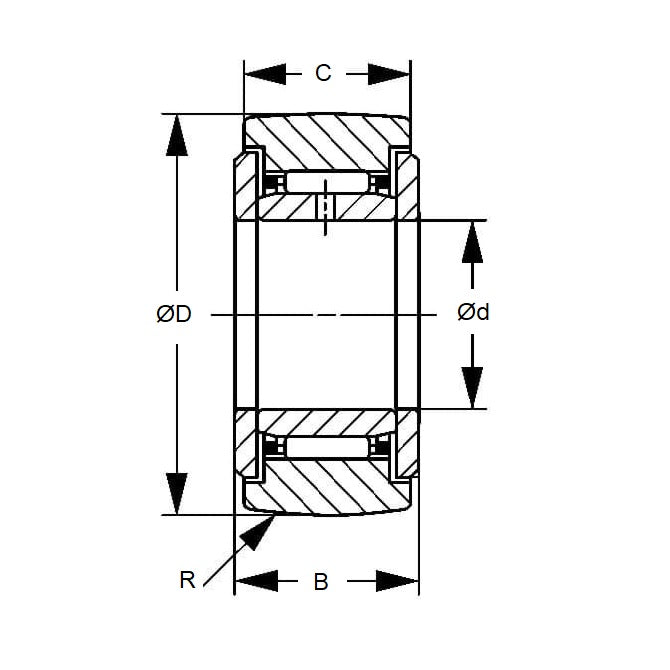

- ID (d)
:
10.00
mm
(Equiv. 0.394 in.) - OD (D)
30.00
mm
(Equiv. 1.181 in.) - Width (C)
14.00
mm
(Equiv. 0.551 in.) - Inner Ring Width (B) 15.00 mm
- OD Type Radius (500mm)
- Dynamic Load Rating 820.00 kgf
- Static Load Rating 770.00 kgf
- Closures Shields
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Nachi NART-10R
- NART10R
