PR-0110-030-ZZ-ES-55 - Datasheet
ENQUIRE
Category Information

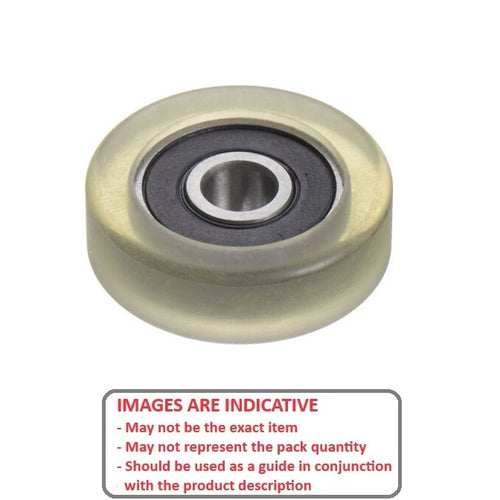

Rollers - Pressure Roller with Bearing - Urethane ODUrethane OD Pressure Roller with Bearing Rollers. Bearings with Urethane Tyre on OD for applications requiring frictional movement.
- For applications including paper and card dispensing and rolling (eg ATM Machines).
Product Data

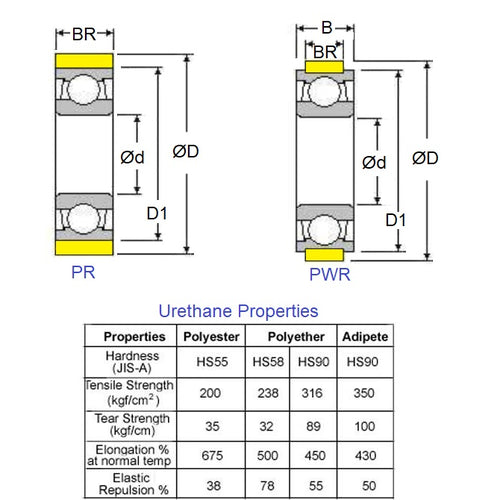

- OD (D)
:
11.000
mm
+/- 0.1
(Equiv. 0.433 in.) - ID (d) 3.000 mm
- Width (B) 4.000 mm
- Roller Width (BR) 4.000 mm
- Bearing Outside Diameter (D1) 9.000 mm
- Roller Material 55 Duro (JIS-A) Polyester Based Urethane - Black
- Closures ZZ
- Bearing Type Pressure Roller
- Material Stainless Steel AISI 440C
Product Compliance and Data
Additional Resources
Cross References
- Origin® SS3-11RM-ZZHSS55
- SS311RMZZHSS55
