KF048C-032-3L - Datasheet
MBA
Category Information
Knobs - Lobe - Three Lobe - Female - StandardStandard Female Three Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data

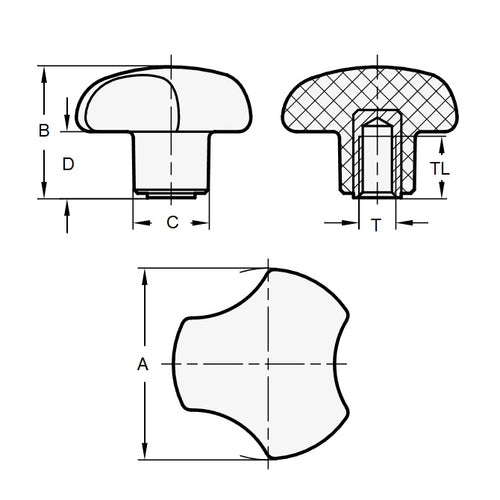

- Thread Size : 10-24 UNC (4.76mm)
- Head Diameter (A)
32.00
mm
(Equiv. 1.26 in.) - Thread Length
8.9
mm
(Equiv. 0.35 in.) - Colour Black
- Hub Diameter (C) 14.99 mm
- Hub Length (D) 6.10 mm
- Length (B) 20.07 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- RST113
- RST-113
