KF048C-032-MRPH - Datasheet
MBA
Category Information

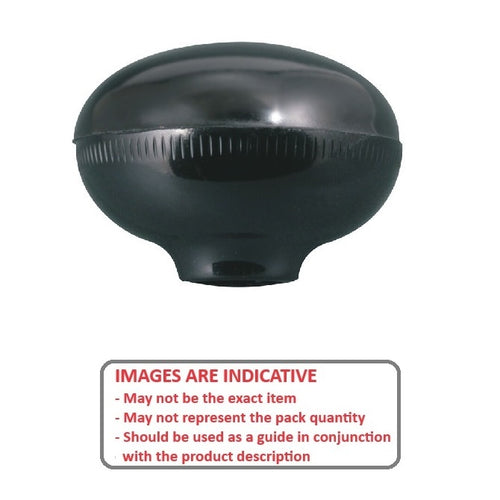

Knobs - Mushroom - Round - Female - PhenolicPhenolic Female Round Mushroom Knobs. This is the main category in this series
Product Data
- Thread Size : 10-24 UNC (4.76mm)

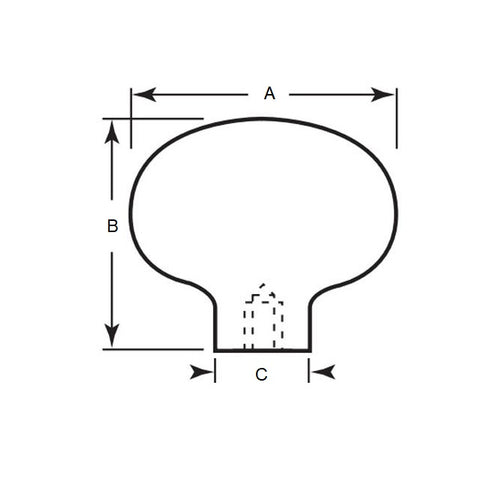

- Head Diameter (A)
31.75
mm
(Equiv. 1.25 in.) - Height (B)
25.0
mm
(Equiv. 0.984 in.) - Thread Type Brass
- Shank Diameter (C) 13.49 mm
- Thread Depth 9.53 mm
- Material Phenolic
Product Compliance and Data
Additional Resources
Cross References
- MPB-8
- MPB8
