KF048C-025-3L - Datasheet
MBA
Category Information
Knobs - Lobe - Three Lobe - Female - StandardStandard Female Three Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 10-24 UNC (4.76mm)

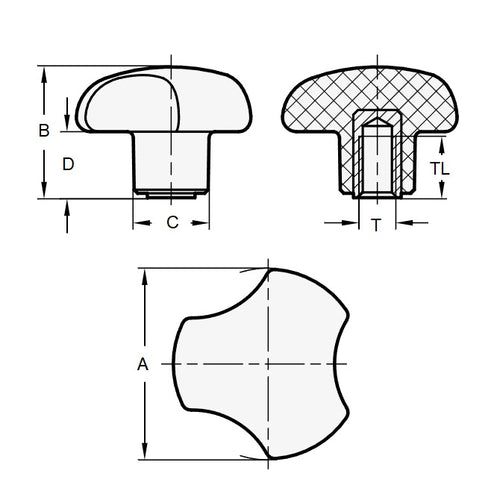

- Head Diameter (A)
24.89
mm
(Equiv. 0.98 in.) - Thread Length
8.9
mm
(Equiv. 0.35 in.) - Colour Black
- Hub Diameter (C) 12.95 mm
- Hub Length (D) 5.08 mm
- Length (B) 16.00 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- RST-112
