KF048C-025-4L - Datasheet
MBA
Category Information

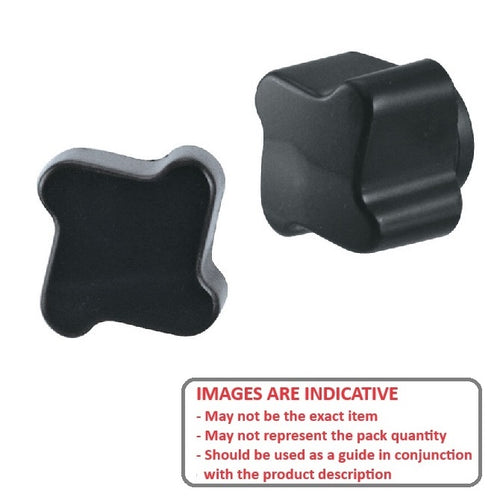

Knobs - Lobe - Four Lobe - Female - StandardStandard Female Four Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 10-24 UNC (4.76mm)
- Head Diameter (A)
24.89
mm
(Equiv. 0.98 in.) - Thread Length
7.1
mm
(Equiv. 0.28 in.) - Colour Black
- Hub Diameter (C) 11.94 mm
- Hub Length (D) 6.10 mm
- Knob Height (B) 14.99 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- JCL-70
- JCL70
