KF048C-020-4L-P - Datasheet

MBA

Category Information

Knobs - Lobe - Four Lobe - Female - Through Hole

Through Hole Female Four Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 10-24 UNC (4.76mm)

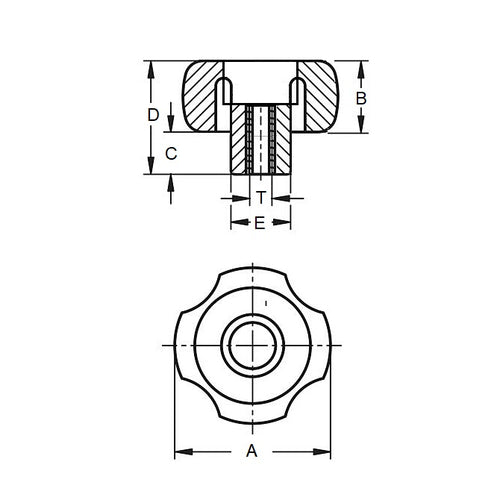

  • Head Diameter (A) 20.07 mm
  • Thread Length 7.1 mm
  • Colour Black
  • Hub Diameter (E) 10.92 mm
  • Hub Length (C) 5.08 mm
  • Knob Height (D) 12.95 mm
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Reid Tool® JCL-130
  • JCL130
View full details

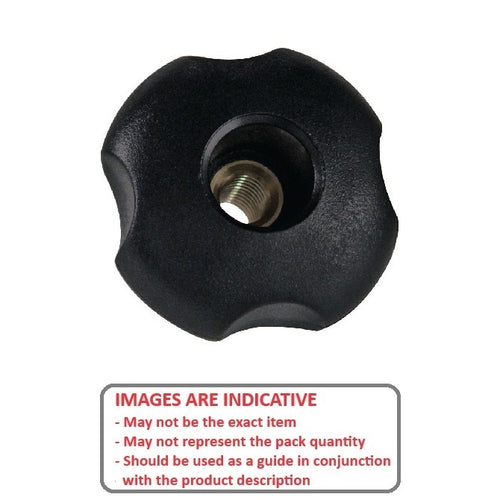

KF048C-020-4L-PDiagramKF048C-020-4L-PImage
