KM048C-020-4L19 - Datasheet

MBA

Category Information

Knobs - Lobe - Four Lobe - Male - Standard

Standard Male Four Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 10-24 UNC (4.76mm)
  • Head Diameter (A) 20.07 mm
  • Thread Length 19.1 mm
  • Colour Black
  • Hub Diameter (C) 9.91 mm
  • Hub Length (D) 7.11 mm
  • Knob Height (B) 13.97 mm
  • Material Plated Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Reid Tool® RST-98
  • RST98
View full details

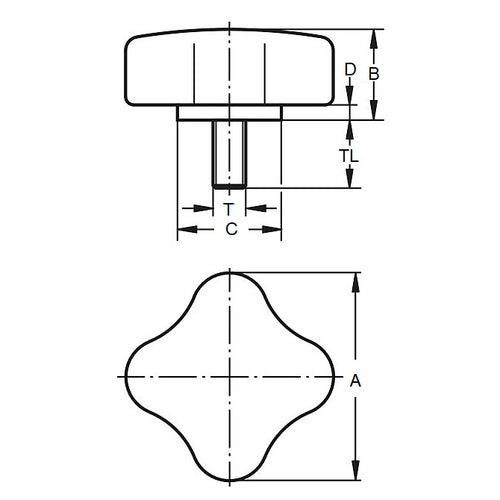

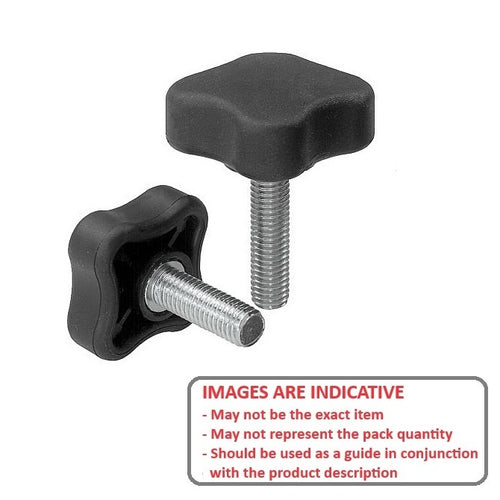

KM048C-020-4L19DiagramKM048C-020-4L19Image
