SS048C-0095-AS-CP - Datasheet

MBA

Product Data

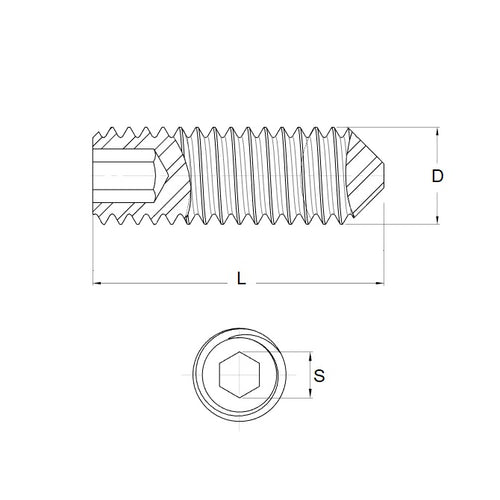

• Thread Size : 10-24 UNC (4.76mm)
• Thread Length (L) 9.5 mm
  (Equiv. 0.374 in.)

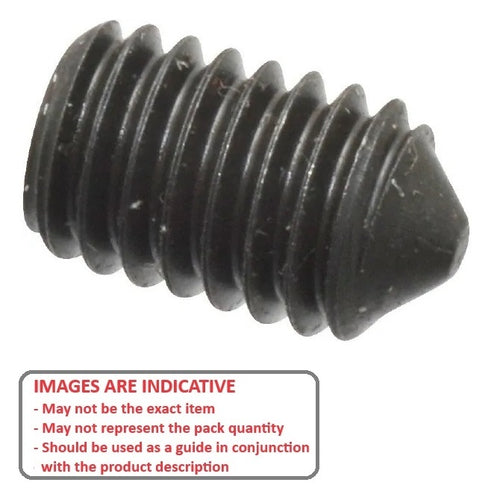

• Type Cone Point
• Hex Key Size 2.38 (3/32)
• Pitch 1.058 mm
• Threads Per Inch 24 TPI
• Point Angle 90 ° +/- 2
• Material Carbon Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Socket Set Screws Master PDF


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 92695A204
• BRB121067P
• BRB-121067P
