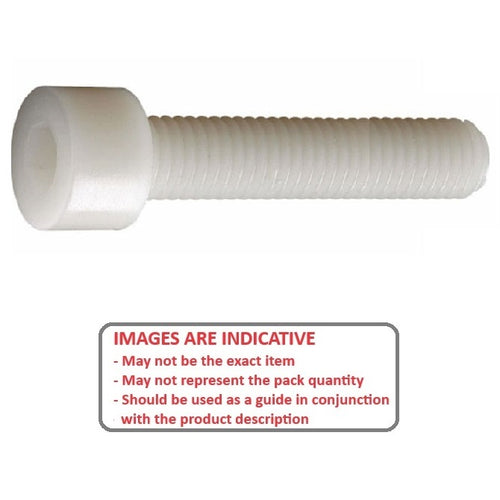

SC048C-038-C-SK-N - Datasheet

MBA

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

• Thread Size (C) : 10-24 UNC (4.76mm)
• Thread Length (L) 38.1 mm
  (Equiv. 1.5 in.)
• Material Nylon
• Head Length (B Max.) 4.8 mm
• Head Diameter (A Max.) 7.9 mm
• Drive Depth (E) 2.29 mm
• Shank Diameter (C) 4.67 - 4.83 mm
• Hex Key (D) 3.97 (5/32) mm
• Pitch 1.058 mm
• Threads Per Inch 24 TPI
• Min thread Length 22.3 mm
• Material Nylon (Polyamide 6/6)
