NT048C-NI-S6 - Datasheet
Brighton Best
Category Information

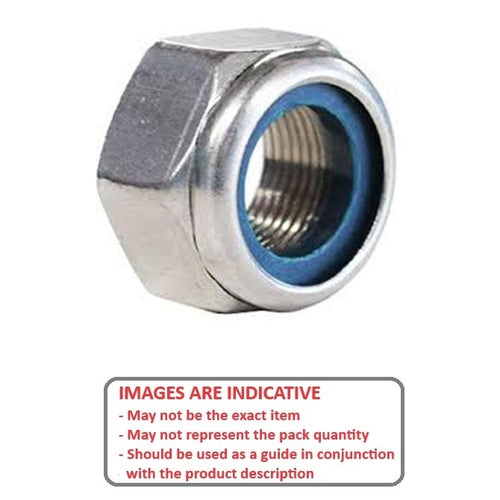

Nuts - Hexagonal - Nylon Insert - Stainless SteelStainless Steel Nylon Insert Hexagonal Nuts. Nylon Insert for Locking. NylocTM and other brands.
- An expanded range may be available on special order. Please enquire.
- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
Product Data
- Thread Size : 10-24 UNC (4.76mm)
- Thickness (H)
6.1
mm
(Equiv. 0.24 in.) - Across Flats (A/F)
9.4
mm
(Equiv. 0.37 in.) - 6.1
- Type Standard
- Pitch 1.058 mm
- Threads Per Inch 24 TPI
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best 311015
- 90715A011
