Miniature Bearings Australia
SC048C-025-C-SK-C-NL - Datasheet
MBA
Category Information

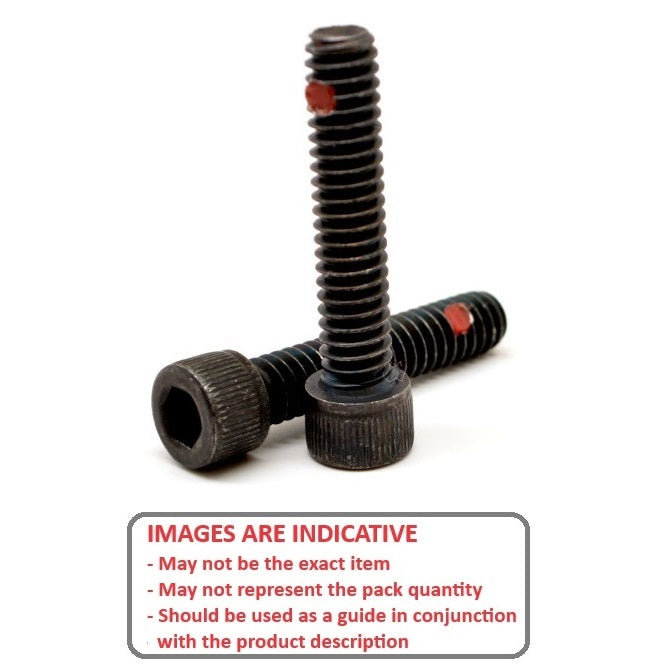

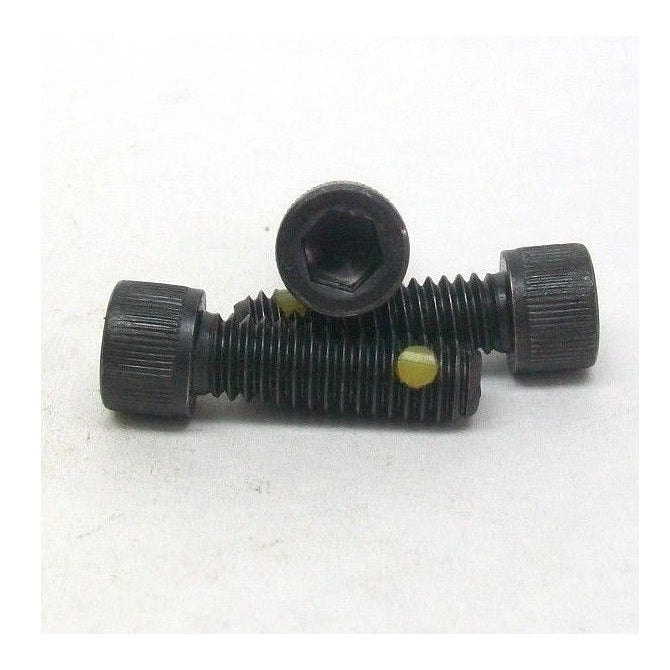

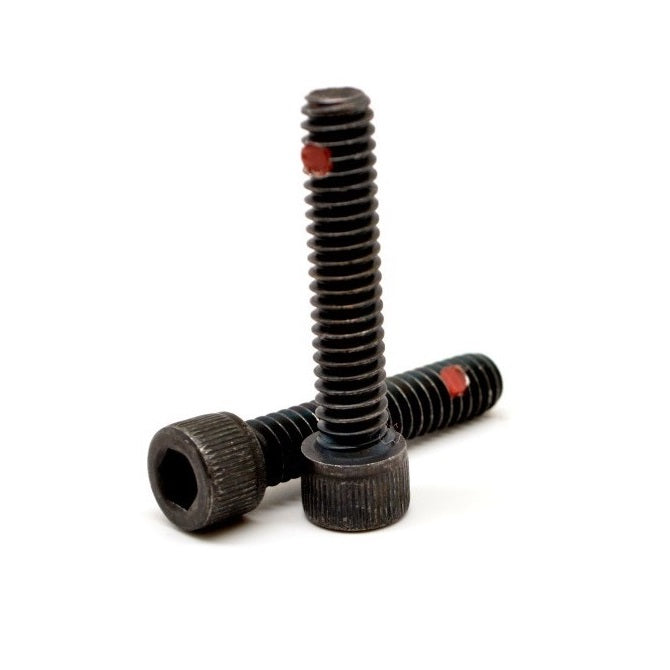

Screws - Socket Cap - Alloy Steel - Nylon LockingNylon Locking Alloy Steel Socket Cap Screws. Alloy steel socket cap screws with nylon locking pellet
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : 10-24 UNC (4.76mm)
- Thread Length (L)
25.4
mm
(Equiv. 1 in.) - Material Black Oxide Carbon Steel
- Head Length (B Max.) 4.83 mm
- Head Diameter (A Max.) 7.93 mm
- Shank Diameter (C) 4.67 - 4.83 mm
- Pellet Diameter 2.40 mm
- Material Steel Alloy
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- TNT-320
- TNT320
