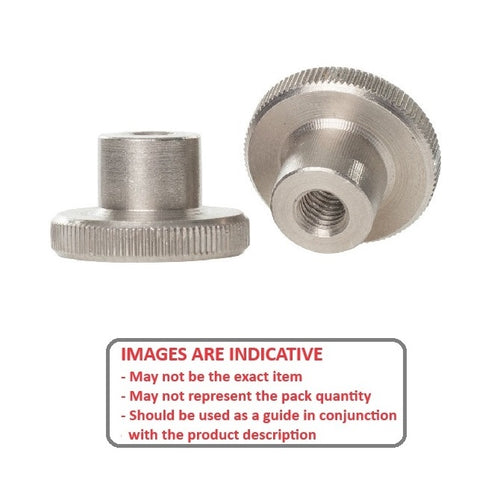

NT048C-TH2506-S3 - Datasheet

MBA

Product Data

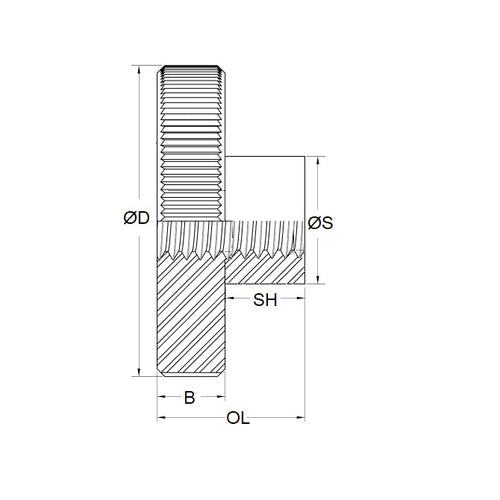

• Thread Size : 10-24 UNC (4.76mm)
• Overall Length 11.1 mm
• Head Width (B) 4.76 mm
• Head Diameter 25.40 mm
• Shoulder Diameter 9.53 mm
• Shoulder Height 6.35 mm
• Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Thumb Screws and Nuts PDF Quick Guide

• Pan Head Screws

• Screws


• Measuring Small Parts
• Metalworking Resource Guide

• Metric Wingnut Dimensions
• Screws & Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Reid Tool® SKN-50
• SKN50
