IN-TP-048C-20-WHF - Datasheet
MBA
Category Information

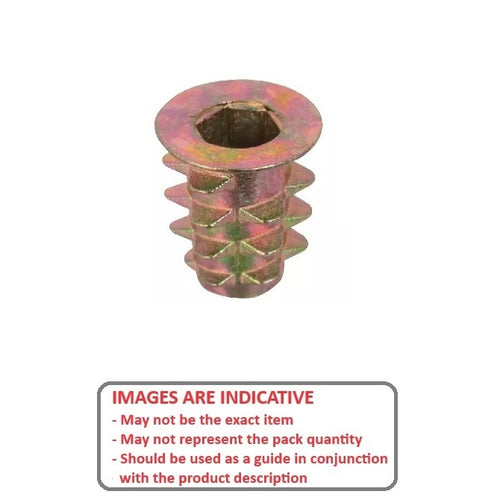

Inserts - Self Tapping - For Wood - Hex Drive - FlangedFlanged Hex Drive For Wood Self Tapping Inserts. Threaded inserts are screwed into preformed or predrilled holes and cut own threads into the wall of permanent installations.
- Die Cast Zinc Alloy. Knife thread cuts easily into a predrilled hole.
- Inexpensive inserts for use in ready to assemble furniture, drawer pulls etc.
- Installs with a hex wrench
Product Data
- Internal Thread : 10-24 UNC (4.76mm)
- Rec. Hole Diameter
7.0
mm

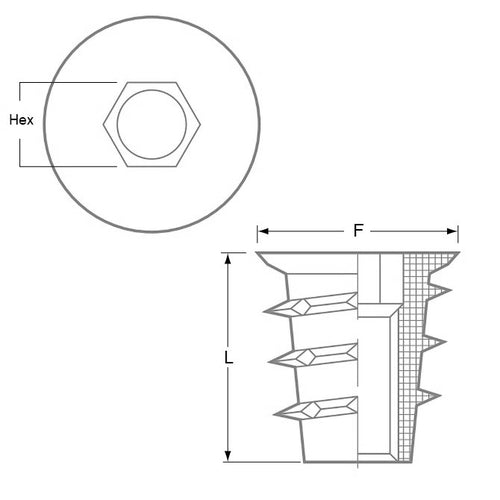

(Equiv. 0.276 in.) - Length (L)
19.990
mm
(Equiv. 0.787 in.) - Hex Size 5.0
Product Compliance and Data
Additional Resources
Cross References
- INTP0476C200WHF
