IN-TP-048C-100-P - Datasheet
MBA
Category Information

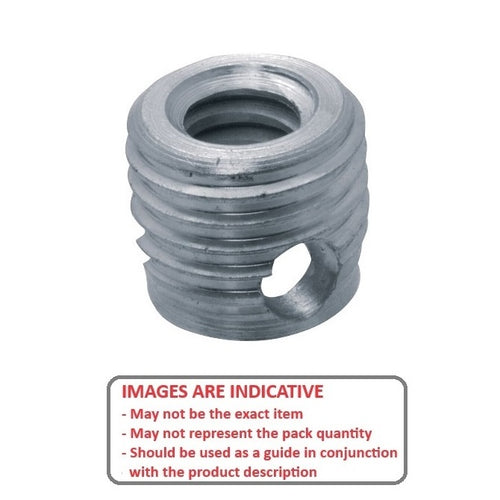

Inserts - Self Tapping - For Plastics - SteelSteel For Plastics Self Tapping Inserts. Threaded inserts are screwed into preformed or predrilled holes and cut own threads into the wall of permanent installations.
- Provides a strong wear and vibration resistant thread.
- Low volumes can be installed by winding in with a bolt through the threaded centre. Large volumes can be installed with hand installation tools (Sold Seperately)
- Hole sizes are reference only. Can variey on batchs. Optimum hole size is to be determinded through experimentation.
- A 60o countersink is required for flush mounting.
- Use with plastics, light metal alloys or hard wood. Made from steel with zinc chromate finish.
Product Data

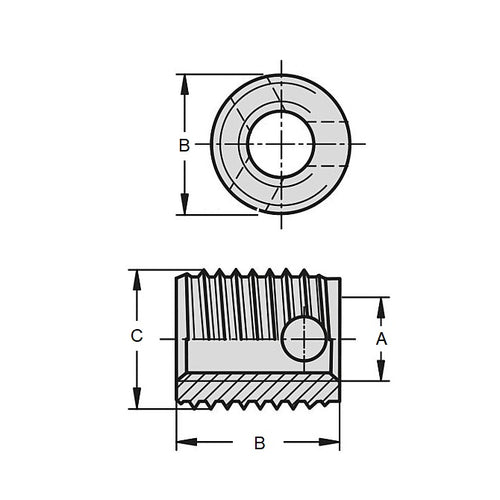

- Internal Thread : 10-24 UNC (4.76mm)
- Rec. Hole Diameter
7.09
mm
(Equiv. 0.279 in.) - Length (L)
10.0
mm
(Equiv. 0.394 in.) - Outside Diameter (B) 8.001 mm
- Required Hole Depth 13.005 mm
- Soft Metals Hole Size 7.29
- Material to be used in Plastic, Light Metal Alloys and Hardwood
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- INTP0476C100P
